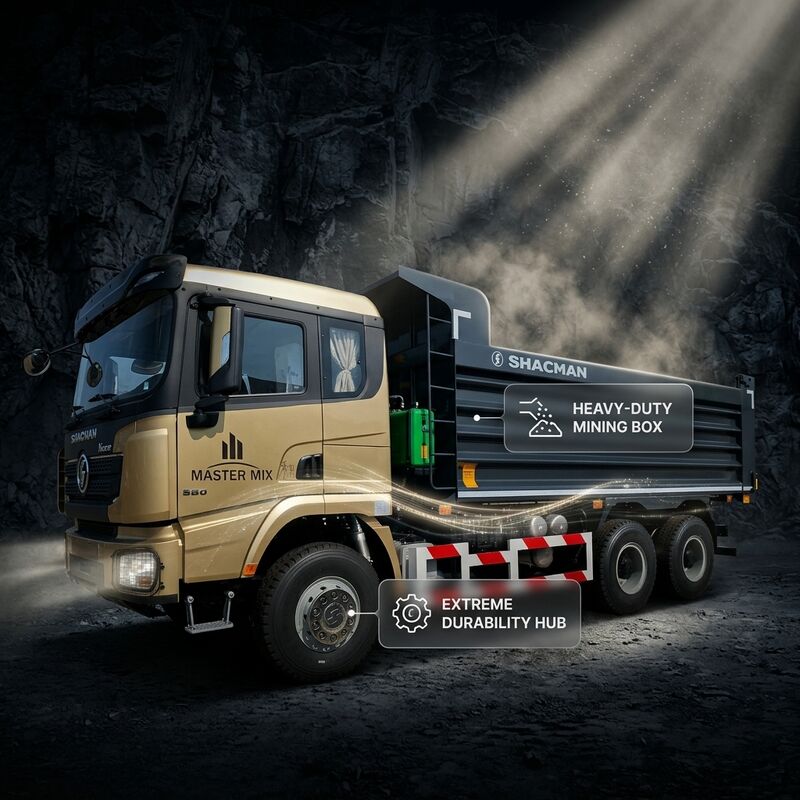

Mining Dump Truck 10 Ton Capacity 6x4 Heavy Duty Weichai Diesel Engine Shacman X3000 Tipper Vehicle

The Shacman X3000 10 Ton Mining Dump Truck represents a purpose-built solution for small to medium-scale mining operations, quarry transport, and construction site material handling. Engineered around the proven WEICHAI WP10.380E32 diesel powerplant, this 6x4 heavy duty tipper truck delivers 380HP of reliable power while maintaining exceptional fuel efficiency across demanding duty cycles. The 10-ton load capacity classification makes this dump truck ideal for operations requiring maneuverability in confined mining pits alongside sufficient payload capacity for gravel, ore, sand, and aggregate transport. With a reinforced high-strength steel frame measuring 850*300(8+7)mm and HANDE front and rear axles, every structural component is over-specified for the rated load to ensure extended service life in abrasive mining environments.

• WEICHAI WP10.380E32 Turbocharged Engine: The 380HP 6-cylinder diesel engine produces substantial low-end torque ideal for loaded hill climbing in mining pits, with wet cylinder liners allowing in-frame overhaul to minimize long-term maintenance costs. Large air filter capacity with dual-stage filtration protects the engine in dusty mining conditions.
• 10 Ton Optimized Load Capacity: The cargo body and chassis components are engineered specifically for 10-ton payload classification, with the frame, suspension, and axle load distribution calibrated to deliver stable handling whether operating on graded haul roads or uneven quarry surfaces.
• FAST 12-Speed Manual Transmission: The FAST gearbox provides 12 forward and 2 reverse ratios, giving operators precise speed control across steep gradients. High torque capacity with low failure rate ensures uninterrupted production cycles in round-the-clock mining shifts.
• High-Strength Double-Layer Frame Chassis: Constructed from grade-certified structural steel with an 850*300mm section and 8+7mm double-layer design, the ladder frame resists both bending moments from heavy loading and torsional stresses from operating on uneven terrain, surpassing standard single-layer designs in fatigue resistance.
• HANDE Heavy-Duty Axles: Purpose-engineered for mining applications with oversized differential carriers, enhanced wheel-end bearings, and reinforced axle housings. The HANDE axle assembly provides exceptional load-bearing margin and proven reliability across thousands of operating hours in harsh conditions.
• Comprehensive Safety Braking System: Dual-circuit compressed air service brakes provide redundant stopping power, while the spring-actuated parking brake and engine exhaust auxiliary brake combine for safe operation on extended downhill grades common to open-pit mining operations.
• All-Terrain 12.00R20 Bias Tires: The deep tread pattern and reinforced sidewall construction provide traction on loose surfaces, puncture resistance against sharp rock fragments, and stable load distribution for the rated 10-ton payload across varying ground conditions.

The 10-ton capacity classification positions this mining dump truck as an agile workhorse suitable for diverse operational scenarios. In open-pit mining, it efficiently transports ore, overburden, and waste rock across short to medium haul distances where larger trucks would be oversized. For quarry operations, the precise handling and compact turning radius make it ideal for navigating narrow extraction benches while delivering consistent payload capacity for crushed stone, gravel, and aggregate materials. Construction sites benefit from its ability to transport bulk materials including sand, concrete rubble, excavated soil, and road base across temporary site roads. The robust WEICHAI engine and HANDE axles ensure reliable operation with minimal downtime even under continuous shift patterns, while the accessible component layout simplifies routine maintenance in field conditions. Underground mining operations with adequate ventilation and tunnel dimensions can also deploy this vehicle for ore haulage from stopes to surface stockpiles.

Every SHACMAN X3000 10 Ton Mining Dump Truck undergoes a comprehensive pre-delivery inspection including engine dynamometer verification, drivetrain alignment check, brake system performance testing, and hydraulic tipper mechanism cycling before shipment. Export packaging utilizes marine-grade protective wrapping for all exposed surfaces, with anti-corrosion coating applied to critical undercarriage components. Shipping methods include RORO (Roll-on/Roll-off) for operational units, containerized knockdown for cost-efficient freight, or flat-rack container configurations based on destination port infrastructure. Complete export documentation package provided including commercial invoice, packing list, certificate of origin, and bill of lading. We maintain a global spare parts inventory with express air freight capability for critical powertrain and hydraulic components to minimize any operational downtime. Standard warranty coverage extends 12 months or 30,000 kilometers from delivery, whichever occurs first, with optional extended warranty programs available for high-utilization mining fleets.
