Various Road Condition Use Shacman Cargo Transport Tractor Tipper Self Dump Truck
Basic Properties
Place of Origin:
SHAANXI,XIAN
Brand Name:
SHACMAN
Trading Properties
Minimum Order Quantity:
1
Price:
Negotiable
Specifications
| Model NO.: | SHACMAN F2000 | Transmission Type: | Automatic |
| Power: | Diesel | Load Capacity: | 21-30t |
| Emission Standard: | Euro 2 | Drive Wheel: | 6×4 |
| Engine Capacity: | ＞8L | Seats: | ≤5 |
| Horsepower: | 351-450hp | Tire Certification: | ECE, GCC |
| Tire Design: | Tubeless | Dumping Type: | Side Dumping Style |
| Condition: | New | Model: | Sx3255jm384 |
| Driver Position: | Left Hand | Wheel Base: | 3775+1400 |
| Max. Speed: | 65km/H | Engine: | Weichai |
| Emission Standard/: | Euro2 | Displacement (L): | 9.726L |
| Fuel Tank: | 380L Iron Tank | Wheels Tires: | 12r22.5(10+1) |
| Transport Package: | Wooden Transport | Specification: | 7900mm*2490mm*3220mm |
| Trademark: | SHACMAN | Origin: | China |
| HS Code: | 8704230090 | Production Capacity: | 800pieces/Year |
| High Light: | Shacman dump truck for cargo transport,self-dumping tipper for road conditions,compactor garbage truck with self-dump |
||
Product Description

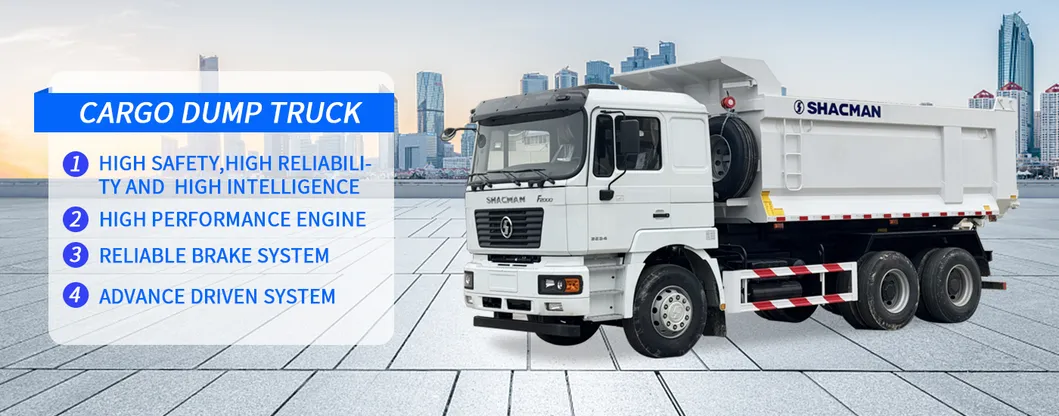

SHACMAN F2000 6×4 Cargo Dump Truck
High performance left-hand drive cargo dump truck designed for various road conditions and heavy-duty transport applications.
Product Overview
A dump truck features an elevated front-end box mechanism that allows controlled dumping of contents from the rear. Ideal for transporting construction materials, sand, gravel, and industrial waste.
SHACMAN offers 5 dump truck series (X3000, F3000, H3000, F2000, L3000) to meet diverse customer requirements. From standard tippers to specialized vehicles for demanding applications, SHACMAN provides comprehensive solutions with professional guidance for optimal vehicle selection.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | SX3255JM384 |
| Driver Position | Left Hand Drive |
| Driving Type | 6×4 |
| Wheelbase | 3775+1400 |
| Maximum Speed | 65km/h |
| Engine | |
| Brand | Weichai |
| Model | WP10.290E32 |
| Emission Standard | EURO2 |
| Rated Output Power | 290 PS |
| Displacement | 9.726L |
| Transmission | |
| Brand | FAST |
| Model | 9JS135-iron hell-QH50 |
| Chassis Components | |
| Front Axle | HANDE MAN7.5T |
| Rear Axle | HANDE 16T MAN Twin-Stage Cast Axle 5.73 |
| Steering | ZF technology/ZF |
| Frame | 850×300(8+7) |
| Suspension | Front and rear multi-leaf spring two main plates + two riding bolts |
| Fuel Tank | 380L iron tank |
| Wheels and Tires | 12R22.5(10+1) |
| Brakes | Running: Dual circuit compressed air brake Parking: Air discharging with spring control Auxiliary: Engine exhaust brake |
| Cabin Features | |
| Configuration | F2000 extended flat roof cab without top deflector tipper truck with hot zone air-conditioner, manual window crank, hydraulic main seat, single sleeper, single rear view mirror, imported clutch, common side air filter, domestic steering gear, common steering wheel, domestic six-channel ABS, domestic tachograph, 165Ah maintenance-free battery, manual flip, fixed on-board pedals, fibreglass bumper |
| Upbody Specifications | |
| Box Size | 5200x2300x1350 |
| Baseplate Thickness | 8 |
| Bangboard Thickness | 6 U type container |
Customization Options
Engine: Weichai or Cummins options available. Cummins offers superior performance but requires specialized maintenance. Weichai provides strong power with easier maintenance accessibility.
Gearbox: FAST manual or EATON ATM transmission systems.
Lifting System: HYVA or Chinese brand lifting mechanisms.
Dumper Size: Customizable height and thickness dimensions available.
Cab: F3000, H3000, or X3000 series options. X3000 offers premium features, F3000 is the most popular, H3000 provides cost-effective solutions. Contact us for detailed comparisons.
Tire: Custom tire configurations available.
Oil Tank: Customizable fuel tank specifications.
Color: White, Red, Orange, Green, Blue color options.
Spares: Additional accessories including cameras, daylight systems, and other optional equipment.
Manufacturer Profile
Shaanxi Hexin Shenghua Trading Co., Ltd is an authorized global export enterprise for Shaanxi Automobile heavy trucks. As the largest export authorized enterprise in SHACMAN heavy truck sales and service, we specialize in vehicle production customization services.
Our development philosophy centers on professionalism, innovation, and long-term vision, with 20 years of foreign trade expertise. Established on September 20, 2019, we integrate export operations for Shaanxi Automobile heavy trucks, construction machinery, and special vehicles.
Continuing the legacy of Silk Road commerce, we actively expand international and domestic markets with established companies and sales outlets in Uzbekistan, Tajikistan, Kyrgyzstan, Vietnam, and other countries. Our foreign trade operations extend across Central Asia, Africa, Asia-Pacific, Central and South America, forming a comprehensive export circulation system.
