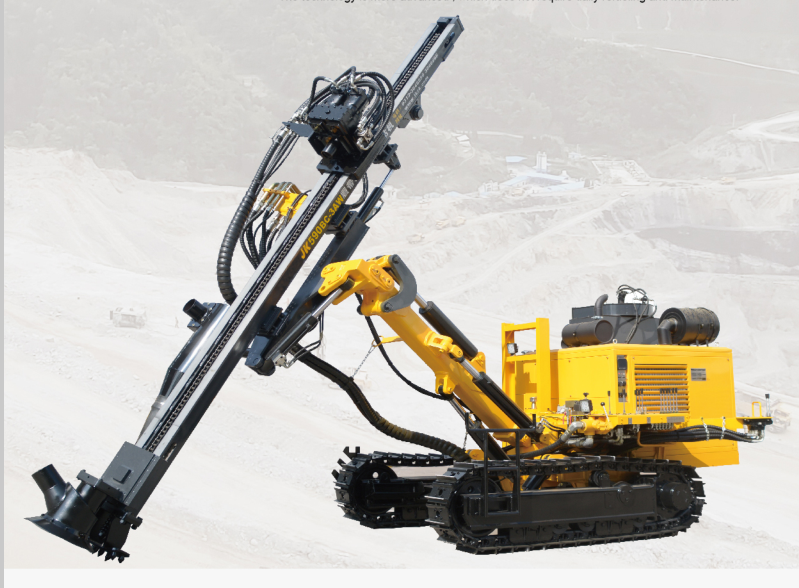

JK590BC-3AW Crawler Mounted DTH Drill Rig 90-130mm Blast Hole Diameter for Quarry Mining Operations

Self-contained, no tow vehicle needed The diesel engine, rotary screw compressor, hydraulic system, and mast all sit on one crawler chassis. Drive it up to the drilling spot, lower the stabilizers, raise the mast, and start drilling. No separate compressor to tow, no hoses to connect, no extra crew required. One man handles the whole machine.

Drills 90 to 130mm holes, up to 30 meters deep Covers the typical blast hole sizes for medium-sized quarry benches. Takes standard 3-inch and 4-inch DTH hammers. The mast is set up for 3-meter drill rods with a semi-automatic loader, so rod changes are fast and the operator stays on the ground.

Moves around the site under its own power Independent hydraulic track motors with 350mm steel shoes. Climbs 30-degree slopes and handles loose rock, mud, and uneven quarry floors. Ground pressure is low enough to cross softer ground without sinking. Travel speed is about 2.5 km/h on flat ground — not fast, but the rig is not a road machine.

Works in hard rock We sized the compressor and rotation head for real granite and basalt conditions, not just soft limestone. The DTH hammer delivers steady penetration because the air supply is matched to the hammer demand. Rotation torque at 2500 Nm with adjustable feed force keeps the bit cutting clean even in fractured ground.

More than just blast hole drilling Swap the hammer and bit and the same machine handles foundation pile drilling, slope anchor installation, or shallow water well drilling. Some of our customers bought the JK590 for quarry blasting and ended up using it for three different jobs across their site.

Easy to maintain We use standard industrial components. Hydraulic filters, engine service parts, track hardware, hammer rebuild kits — none of it is proprietary. You can source consumables locally or from any industrial source. The engine bay opens from both sides for filter changes. Grease points are grouped so you can hit them all without walking around the machine. JK590BC-3AW Specifications

Machine weight 5,800 - 6,500 kg (varies by configuration)

Hole diameter range 90 - 130 mm

Max drilling depth 30 m (with 3m rods, depends on hammer size and rock conditions)

Drill rod length 3,000 mm per section

DTH hammer class 3-inch and 4-inch

Power Turbocharged diesel engine, electric start

Air compressor Built-in rotary screw, oil-injected, air-cooled

Working pressure 1.0 - 2.5 MPa (adjustable to suit the hammer you are running)

Air consumption 12 - 18 m³/min at working pressure

Rotation torque 2,500 Nm at 0 - 80 rpm

Feed force 15 kN downfeed, 20 kN pullback

Travel drive Independent hydraulic track motors, left and right

Track shoe width 350 mm, heavy-duty steel

Ground pressure Approximately 0.05 MPa

Gradeability Up to 30 degrees on firm ground

Travel speed 0 - 2.5 km/h (low gear, high torque)

Mast tilt range 0 to 90 degrees forward, ±45 degrees lateral swing

Rod handling Semi-automatic hydraulic loader with carousel

Fuel tank 120 liters (full shift on one fill)

Hydraulic tank 160 liters with return filter and oil cooler

Dust suppression Dry cyclone dust collector or water injection system (choose at order)

Operating temperature -15 to 45 degrees Celsius (cold-start kit available for colder sites)

Max altitude 3,000 m (high-altitude turbo kit available)

Safety Emergency stop, FOPS/ROPS canopy, hose protection, lockable control panel

Soft limestone, shale, marl 0.8 - 1.5 meters per minute 105 - 130 mm

Medium sandstone, dolomite 0.5 - 0.9 meters per minute 90 - 115 mm

Hard granite, basalt, gabbro 0.2 - 0.5 meters per minute 90 - 105 mm

Very hard quartzite, gneiss 0.1 - 0.3 meters per minute 90 - 105 mm

Broken, fractured ground 0.4 - 0.8 meters per minute 105 - 130 mm

Length, mast folded About 5,500 mm

Width About 2,200 mm

Height, mast folded About 2,600 mm

Height, mast raised (working) About 7,200 mm

Ground clearance About 320 mm under belly plate

Quarry blast hole drilling Production drilling in granite, limestone, and aggregate quarries. Handles the daily bench drilling that a mid-size quarry needs without the capital cost of a larger rig.

Small-scale open-pit mining Blast hole patterns in small to medium mining operations. Works well for gold, copper, iron ore, and quarry stone where bench heights run 10 to 20 meters.

Road and railway construction Rock excavation drilling for highway cuts, railway cuttings, and bridge foundation preparation. Self-contained mobility means it moves between drill points without a tow vehicle.

Foundation and geotechnical drilling Pile foundation holes for buildings, solar panel arrays, and retaining walls. The mast tilts for angled holes when you need to install rock anchors or soil nails.

Shallow water well drilling Agricultural irrigation wells and rural water supply boreholes in soil and weathered rock formations. Not meant for deep aquifer work, but covers the depth most rural water projects need.

Shipping, Warranty, and What You Get After You Buy

How we ship Flat-rack container is standard (machine stays assembled, just fold the mast). 40ft high-cube container loading is available with mast and tracks removed if that works better for your freight setup. Anti-corrosion treatment applied before crating. Full export documents included.

Delivery time 30 to 45 working days from deposit for standard configuration. Custom specs or special hammer setups add about 10 working days. Spare parts can ship ahead of the machine if you need them on site before the rig arrives.

Warranty 12 months or 2,000 operating hours from commissioning, whichever comes first. Covers the engine, compressor, hydraulic system, and main structure. Wear items — hammers, bits, drill rods, track shoes — are excluded but we keep them in stock for quick dispatch.

After you take delivery Every machine ships with a starter spares kit: DTH hammer service parts, a few drill rod adapters, hydraulic and engine filters, and track hardware. You also get an English operation manual, a maintenance schedule wall chart, and video guides for common service procedures. Remote support by video call is available if your crew runs into something unexpected.

The JK810 is a heavier, more powerful machine with a wider hole range and deeper reach. If you are drilling 140mm holes past 40 meters in hard granite, the JK810 is the right call. The JK590BC-3AW covers the 90-130mm range at shallower depths and is priced lower. For quarries running 115mm blast holes at 15-20 meter bench heights, the JK590 does the job at a better cost point.

How many people to run it? One operator. The hydraulic controls are laid out simply and the rod loader handles the physical work. Most operators with some excavator or heavy equipment time pick it up in a few days of on-site practice.

What happens if the rock is harder than expected? Switch to a higher-power DTH hammer or adjust the air pressure setting. The compressor pressure is adjustable within the 1.0-2.5 MPa range. If you are consistently working in hard basalt or quartzite, let us know when you order and we will spec the hammer and bit package accordingly.

Can we use it at high altitude? Standard configuration works up to 3,000 meters. Above that, the engine loses power and the compressor output drops. We offer a high-altitude turbo kit that compensates for this. Tell us your site elevation when you enquire.

What about spare parts down the road? We use standard industrial components for all wear items. DTH hammers, bits, chuck bushings, hydraulic filters, engine filters, and track hardware are standard sizes you can source from multiple suppliers. You are not locked into buying from us, though we do keep a rolling inventory for customers who prefer to order everything from one place.

Do you handle the export process? Yes. We prepare the complete export documentation — commercial invoice, packing list, certificate of origin, bill of lading. We can coordinate with your freight forwarder or recommend one if you do not have a regular shipper. We have exported to Southeast Asia, South Asia, the Middle East, Africa, and South America.

If you are pricing a blast hole drill rig for your quarry, mine, or construction project, send us your site details. We need to know what rock you are drilling, the hole diameter and depth you need, and where the machine is going. We will put together a configuration and cost with shipping to your destination.
