10 Wheeler 6x4 Diesel Dump Truck 380Hp 430HP Euro 2 8x4 Left Rear Tipper Trucks
Basic Properties
Place of Origin:
SHAANXI,XIAN
Brand Name:
SHACMAN
Trading Properties
Minimum Order Quantity:
1
Price:
Negotiable
Specifications
| Condition: | New | Steering: | Left, ZF Technology |
| Horsepower: | 340 - 450hp | Emission Standard: | Euro 2 |
| Segement: | Heavy Truck | Market Segement: | Urban Construction Muck Transportation |
| Engine Brand: | Weichai | Fuel Type: | Diesel |
| Engine Capacity: | > 8L | Cylinders: | 12 |
| Gear Box Brand: | FAST | Transmission Type: | Manual |
| Forward Shift Number: | 10 | Reverse Shift Number: | 2 |
| Maximum Torque(Nm): | 1500-2000Nm | Dimensions (L x W x H) (mm): | 5800x2300x1500mm |
| Cargo Tank Dimension: | 5800x2300x1500mm | Cargo Tank length: | 5.3-6.2M |
| Gross Vehicle Weight: | 15-20T | Capacity (Load): | 21 - 30T |
| Fuel Tank Capacity: | 300-400L | Drive Wheel: | 6x4/8x4 |
| Passengers: | 2 | Driver's Seat: | Air Suspension |
| Rear Camera: | Camera | Touch Screen: | Yes |
| Air Conditioner: | Manual | Tire Number: | 10 |
| After-sales Service Provided: | Video Technical Support, Online Support | Product name: | F3000 10 Wheeler 6x4 380Hp 430HP Fast Gear Box Brand Dump Truck |
| Wheelbase: | 3975+1400mm/1800+3975+1400mm | Max. Speed: | 75km/h |
| Front/Rear Axle: | HANDE | Clutch: | 430 Diaphragm Clutch |
| Suspension: | Front And Rear Multi-leaf Spring, Four Main Plates+four Horse Bolts | Tires: | 12.00R20 10+1/13R22.5 12+1 |
| Cab: | Standard Flat Cab(Optional) | Color: | Customer's Request |
| High Light: | 6x4 Diesel Dump Truck,10 Wheeler Diesel Dump Truck,8x4 Rear Tipper Truck |
||
Product Description

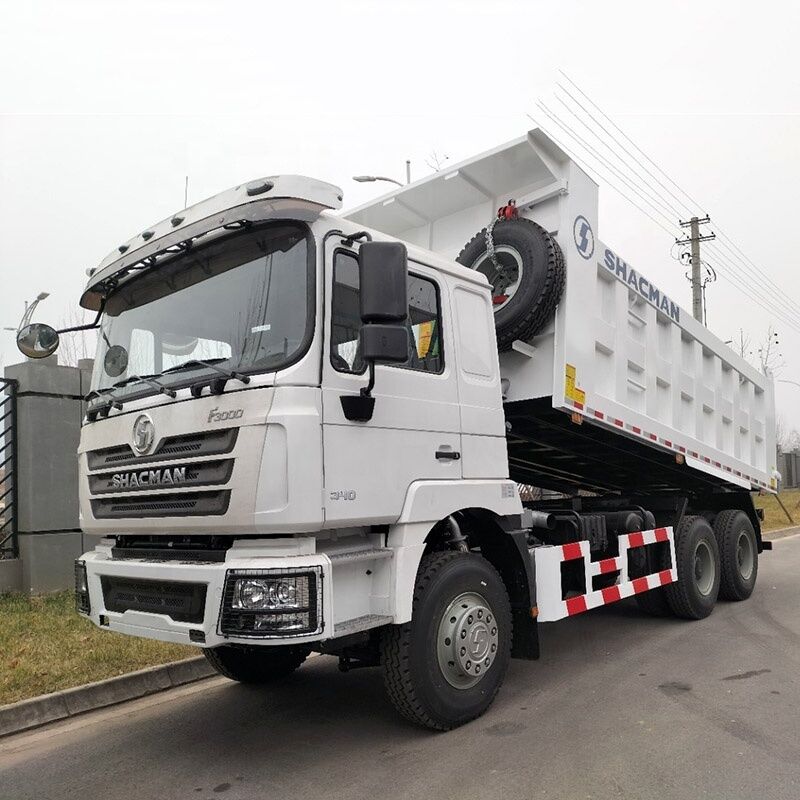

SHACMAN F3000 Series Dump Trucks
The SHACMAN F3000 dump truck is engineered for heavy-duty material transport, utilizing hydraulic lifting mechanisms to efficiently unload cargo through controlled tilting. Designed for transporting sand, gravel, soil, construction materials, coal, ore, and industrial waste, these trucks combine robust construction with advanced engineering.
Available Configurations
Truck Chassis: SHACMAN (Also available: Dongfeng, FAW, FOTON, ISUZU, SINOTRUK HOWO, JAC)
Driving Type: 4x2, 6x4, 8x4 configurations
Load Capacity: Standard (25-40t), Composite (40-60t), Heavy (60-80t), Extra Heavy (80t+)
Applications: Urban construction, road transport, mining operations, material handling
Lifting Method: Front lift (primary), side lift, center lift options
Cargo Box: Custom dimensions available based on requirements
Technical Specifications
| Specification | 6x4 Model | 8x4 Model |
|---|---|---|
| Driving Style | Left hand drive/Right hand drive | |
| Wheelbase | 3975+1400mm | 1800+3975+1400mm |
| Max. Speed | 75km/h | |
| Fuel Type | Diesel | |
| Engine Model | WEICHAI | |
| Transmission | FAST | |
| Power | 279KW/380HP | 294KW/400HP |
| Front/Rear Axle | HANDE | |
| Steering | ZF technology | |
| Frame | 850x300(8+7)mm | |
| Fuel Tank | 400L Aluminum alloy | 380L Aluminum alloy |
F3000 6X4 10 Wheels Dump Truck
F3000 8X4 12 Wheels Dump Truck
About Henan Senyao Heavy Truck International Trade Co., Ltd.
As a global export authorization enterprise of Shaanxi Automobile Heavy Truck, we specialize in the export integration of heavy trucks, special vehicles, and construction machinery. With an annual export capacity exceeding 3,000 units, we maintain a comprehensive sales network across Central Asia, Africa, and Central/South America. Our commitment to "mutual benefit, honesty and win-win" partnerships ensures exceptional product quality and service delivery.
Shipping & Logistics
Professional Packaging: Weather-proof and secure export packaging
Shipping Methods: RORO, container, or bulk vessel options
Global Delivery: Experience shipping to 50+ countries worldwide
Documentation: Complete export documentation provided
Frequently Asked Questions
Q1: What is the warranty period for SHACMAN dump trucks?
A: We offer 12 months warranty (without mileage limit) for our dump trucks.
Q2: Can you provide right-hand drive versions?
A: Yes, we can supply both left-hand and right-hand drive configurations.
Q3: Do you provide custom body sizes?
A: Yes, we can customize body sizes from 20m³ to 30m³ based on your requirements.
Q4: What's the maximum gradeability?
A: Our dump trucks can handle gradients up to 35% depending on load conditions.
Q5: Do you provide operator training?
A: Yes, we provide comprehensive operation and maintenance training.
Q6: What payment terms do you accept?
A: We accept T/T, L/C, and other flexible payment methods.
Q7: What's the delivery time for bulk orders?
A: For orders of 10+ units, delivery time is 45-60 days.
Q8: Can you provide mining-specific configurations?
A: Yes, we offer reinforced frames, heavy-duty axles, and enhanced cooling systems for mining applications.
Selection Guide: Define Your Needs
1. Primary Cargo Type:
- Sand, gravel, earth: Heavy cargo requiring high load-bearing capacity and structural strength
- Coal, ore: Heavy, potentially corrosive materials requiring wear-resistant steel construction
- Construction waste, muck: Debris-containing materials requiring high-impact strength and sometimes covered tops
- Grain, feed: Lightweight bulk cargo requiring high-volume, sealed containers
2. Cargo Weight & Volume: Determine rated load mass (tonnage) and body volume requirements while complying with legal load regulations.
3. Road Conditions:
- Highway/Urban roads: Require environmental compliance, noise control, and U-shaped containers for clean unloading
- Construction sites, mining areas: Require high passability, reliability, and engineering chassis with reinforced components
- Mountainous/Hilly areas: Require high horsepower, torque, and advanced brake cooling systems
4. Budget Range: Prices range from $30,000+ to $97,000-$120,000 depending on chassis brand, engine specifications, body size, and structural strength.
Key Questions for Suppliers
A. Chassis and Powertrain Considerations:
- Chassis Brand & Model: Choose mainstream brands for wider service networks and easier maintenance
- Engine Requirements: Select horsepower (300-400+ HP) based on terrain and load requirements
- Transmission: FAST multi-gear manual transmissions recommended for heavy-duty applications
- Hydraulic Retarder: Essential for mountainous driving and enhanced safety
- Axle Specifications: Engineering axles with appropriate gear ratios for specific applications
- Chassis Reinforcements: Double-layer frames and multi-leaf spring suspensions for heavy-duty use
B. Superstructure (Body & Hoisting System):
- Body Specifications: U-shaped environmentally friendly containers with high-strength wear-resistant steel
- Hoisting Mechanism: Front tipping systems for heavy loads with reliable hydraulic cylinders
- Hydraulic System: Quality pumps with optimized hoisting times for safety and efficiency
