| Model Number: | H3000 |
| MOQ: | 1 |
| Price: | Negotiable |
| Delivery Time: | 35-55days |

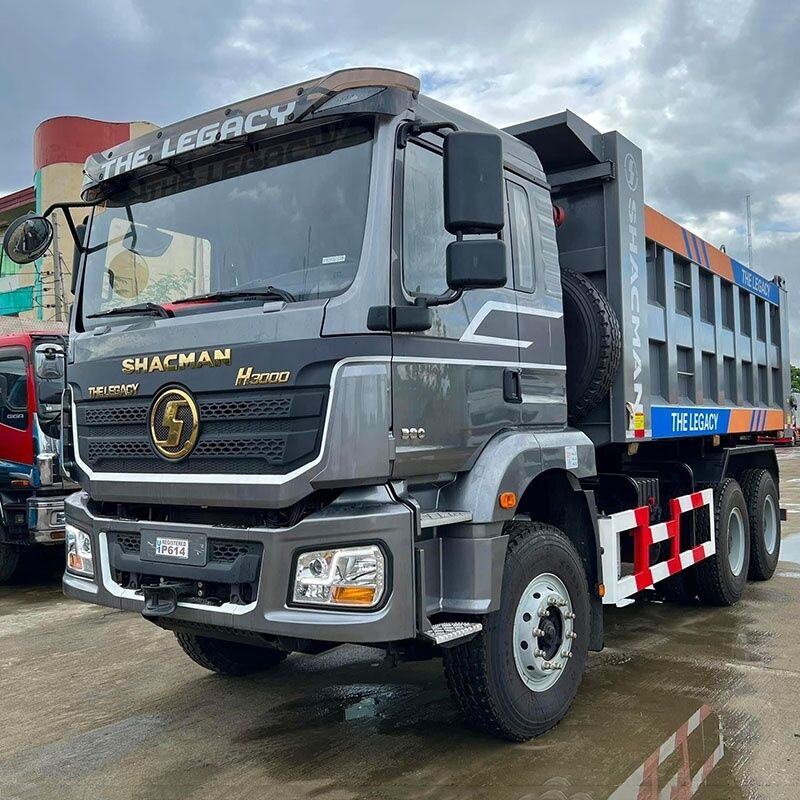

An engineering site tipper is judged on the road it leaves, not the road it drives in on. This H3000 6x4 ten wheeler carries an 850 x 300 (8+7) mm frame, front and rear multi leaf springs with four main plates and four U-bolt clamps per side, and HANDE axles front and rear, so the structure absorbs repeated loading on unsealed haul roads rather than passing it into the cab.
Power comes from a Weichai six cylinder diesel in the 340-450 HP band, built here at 380 HP, driving through a FAST manual gearbox with ten forward ratios and two reverse. Ten forward gears matter on a site: one ratio for the loaded climb out of the cut, one for the run, one for the tip apron.
Build detail| Configuration | 6x4, ten wheels, 12.00R20 tyres |
|---|---|
| Wheelbase | 3775 + 1400 mm |
| Engine | Weichai diesel, six cylinders, above 8 L, 380 HP build |
| Gearbox | FAST manual, 10 forward, 2 reverse, 430 mm clutch |
| Frame | 850 x 300 (8+7) mm, riveted |
| Suspension | Multi leaf, four main plates and four U-bolts per side |
| Cargo box | 5800 x 2300 x 1500 mm steel |
| Gross weight | 25-30 t, rated load 21-30 t |
| Overall size | 8500 x 2600 x 3450 mm |
Send us the site plan, the haul distance and the worst gradient on the route and we will confirm ratio, body gauge and tyre specification for that duty.
