Shacman F3000 Series 340hp 8X4 Drive Wheel Euro 2 Emission Standard Dump Truck
Basic Properties
Place of Origin:
SHAANXI,XIAN
Brand Name:
SHACMAN
Trading Properties
Minimum Order Quantity:
1
Price:
Negotiable
Payment Terms:
T/T
Supply Ability:
800 Units/Per Day
Specifications
| Steering: | Left, ZF Technology | Horsepower: | 340hp |
| Emission Standard: | Euro 2 | Engine Brand: | Weichai |
| Fuel Type: | Diesel | Transmission Type: | Manual |
| Drive Wheel: | 8X4 | Driver's Seat: | Air Suspension |
| High Light: | 340hp Dump Truck,8X4 Drive Wheel Tipper Truck,Euro 2 Emission Standard Shacman Truck |
||
Product Description

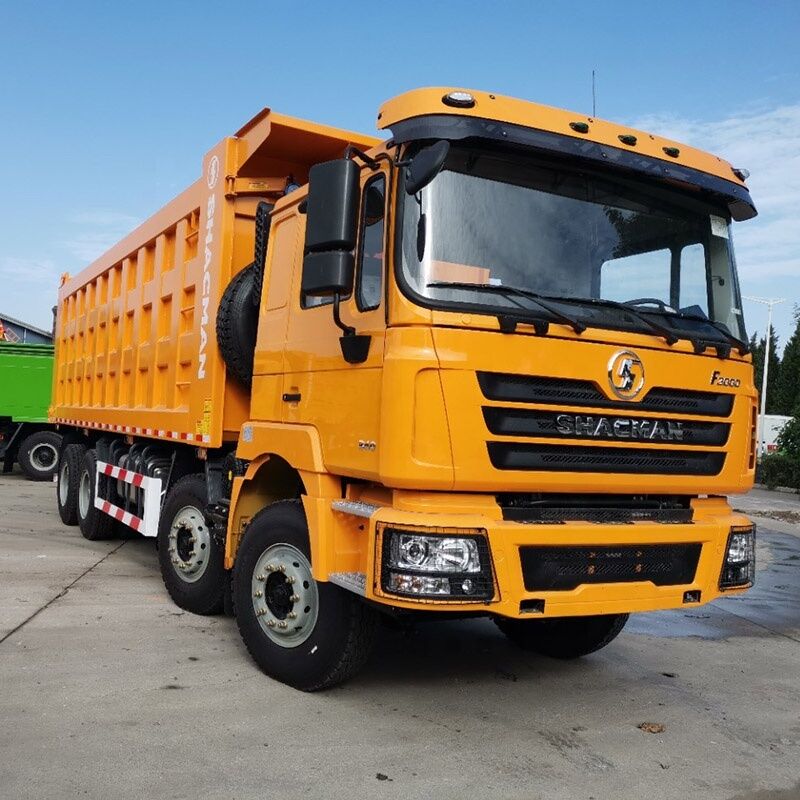

SHACMAN F3000 Series Dump Trucks
The dump truck is a specialized vehicle that uses engine power to drive a hydraulic lifting mechanism, tilting its carriage to unload cargo efficiently. Designed for transporting sand, stone, soil, garbage, building materials, coal, ore, and other materials, these trucks offer reliable performance in demanding conditions.
Available Configurations
Truck Chassis Options
SHACMAN (We can also supply Dongfeng, FAW, FOTON, ISUZU, SINOTRUK HOWO, JAC, and other brands upon request)
Driving Types
- 4x2, 6x4, 8x4 configurations available
Load Capacity Options
- Standard version: 25-40t
- Composite version: 40-60t
- Heavy version: 60-80t
- Extra heavy version: >80t
Applications
- Urban construction waste transport
- Road transportation
- Engineering mining operations
- Construction materials transportation
Lifting Methods
- Front lift (primary method)
- Side lift and center lift (available on select models)
Customization
Cargo box dimensions can be customized based on client specifications or recommendations from our engineering team.
Technical Specifications
| Specification | 6x4 Model | 8x4 Model |
|---|---|---|
| Driving Style | Left hand drive/Right hand drive | |
| Wheelbase | 3975+1400mm | 1800+3975+1400mm |
| Max. Speed | 75km/h | 75km/h |
| Fuel Type | Diesel | |
| Engine Model | WEICHAI | |
| Transmission | FAST | |
| Power | 279KW/380HP | 294KW/400HP |
| Front/Rear Axle | HANDE | |
| Steering | ZF technology | |
| Suspension | Front and rear multi-leaf spring, four main plates+four horse bolts | |
| Frame | 850x300(8+7)mm | |
| Fuel tank | 400L Aluminum alloy | 380L Aluminum alloy |
| Brakes | Running brake: Dual circuit compressed air brake Parking brake: Air discharging with spring control Auxiliary brake: Engine exhaust brake |
|
| Cabin | Standard flat cab (Optional) | |
About Henan Senyao Heavy Truck International Trade Co., Ltd.
We specialize in the export integration of Shaanxi Automobile Heavy Truck, special vehicles, and construction machinery, serving as a global export authorization enterprise of Shaanxi Automobile Heavy Truck. With an annual export capacity exceeding 3,000 units, we maintain a strategic policy of "mutual benefit, honesty and win-win," building an extensive sales network across Central Asia, Africa, and Central and South America.
Shipping & Logistics
- Professional export packaging: Weather-proof and secure
- Multiple shipping methods: RORO, container, or bulk vessel
- Worldwide delivery: Experience in shipping to 50+ countries
- Documentation support: Complete export documentation provided
Frequently Asked Questions
What is the warranty period for SHACMAN dump trucks?
We offer 12 months (without mileage limit) for our dump trucks.
Can you provide right-hand drive versions?
Yes, we can supply both left-hand and right-hand drive configurations.
Do you provide custom body sizes?
Yes, we can customize body sizes from 20m³ to 30m³ based on your requirements.
What's the maximum gradeability?
Our dump trucks can handle gradients up to 35% depending on load conditions.
Do you provide operator training?
Yes, we provide comprehensive operation and maintenance training.
What payment terms do you accept?
We accept T/T, L/C, and other flexible payment methods.
What's the delivery time for bulk orders?
For orders of 10+ units, delivery time is 45-60 days.
Can you provide mining-specific configurations?
Yes, we offer reinforced frames, heavy-duty axles, and enhanced cooling systems for mining applications.
How to Choose the Right Dump Truck
Step 1: Define Your Needs
Consider these key factors to determine the optimal vehicle configuration:
Primary Cargo Type
- Sand, gravel, earth: Heavy cargo requiring high vehicle load-bearing capacity and strength
- Coal, ore: Heavy, potentially corrosive cargo requiring high wear resistance for truck body steel plates
- Construction waste, muck: Contains various debris, requires high strength and sometimes covered/sealed tops
- Grain, feed: Lightweight bulk cargo requiring high volume and sealing, with lower load-bearing demands
Cargo Weight and Volume
Determine the rated load mass (tonnage) and body volume (cubic meters) needed, ensuring compliance with standardized legal load weights.
Road Conditions
- Highway/Urban roads: High requirements for environmental protection, noise, and emissions; often requires U-shaped environmentally friendly containers
- Construction sites, mining areas, unpaved roads: Harsh conditions requiring high passability and reliability; need engineering version chassis with reinforced components
- Mountainous/Hilly areas: High requirements for engine horsepower, torque, and brake cooling systems
Budget Range
Dump truck prices range from $30,000 to $97,000+, depending on chassis brand, engine specifications, body size, and strength requirements.
Step 2: Key Questions for Suppliers
Chassis and Powertrain Considerations
- Chassis brand and model: Choose mainstream brands for wider after-sales service networks
- Engine horsepower and specifications: Select based on terrain and load requirements
- Transmission type: Engineering use requires durable multi-gear manual transmissions
- Hydraulic retarder: Highly recommended for mountainous driving safety
- Axle specifications: Heavy loads require engineering axles with appropriate gear ratios
- Chassis reinforcements: Check frame thickness and suspension configuration for heavy-duty applications
Superstructure Considerations
- Body dimensions and material: U-shaped environmentally friendly containers recommended for clean unloading and high strength
- Hoisting mechanism type: Front tipping is current mainstream for heavy loads
- Hydraulic system configuration: Consider pump type, brand, and hoisting time for optimal performance
