Mini Small 1.5ton 5ton 10ton Cold Storage Truck Refrigeration Units Meat Transport Refrigerated Truck
Basic Properties
Place of Origin:
SHAANXI,XIAN
Brand Name:
SHACMAN
Trading Properties
Minimum Order Quantity:
1
Price:
Negotiable
Specifications
| Model: | L3000 | Transmission Type: | Manual |
| Condition: | New | Horsepower: | 150 - 250hp |
| Emission Standard: | EURO 2 3 4 5 | Fuel Type: | Diesel |
| Dimensions (L x W x H) (mm): | 12000*2600*3995 | Box Dimensions (L x W x H) (mm): | 9250*2430*2500 |
| Temperature Range: | -18 - 20℃ | Gross Vehicle Weight: | 15-20T |
| After-sales Service Provided: | Online Support, Video Technical Support | Maximum Torque(Nm): | 1500-2000Nm |
| Capacity (Load): | 11 - 20T | Engine Capacity: | > 8L |
| Product name: | SHACMAN L3000 4x2 Refrigerated Truck Freezer Cold Box Truck | Drive type: | 4x2, 6x4/8x4/4x4/6x6 For Choice |
| Chassis Brand: | SHACMAN | Wheelbase: | 3600mm |
| Max. Speed: | 90km/h | ||
| High Light: | Mini cold storage truck refrigeration unit,5ton refrigerated truck meat transport,10ton cold storage truck with warranty |
||
Product Description

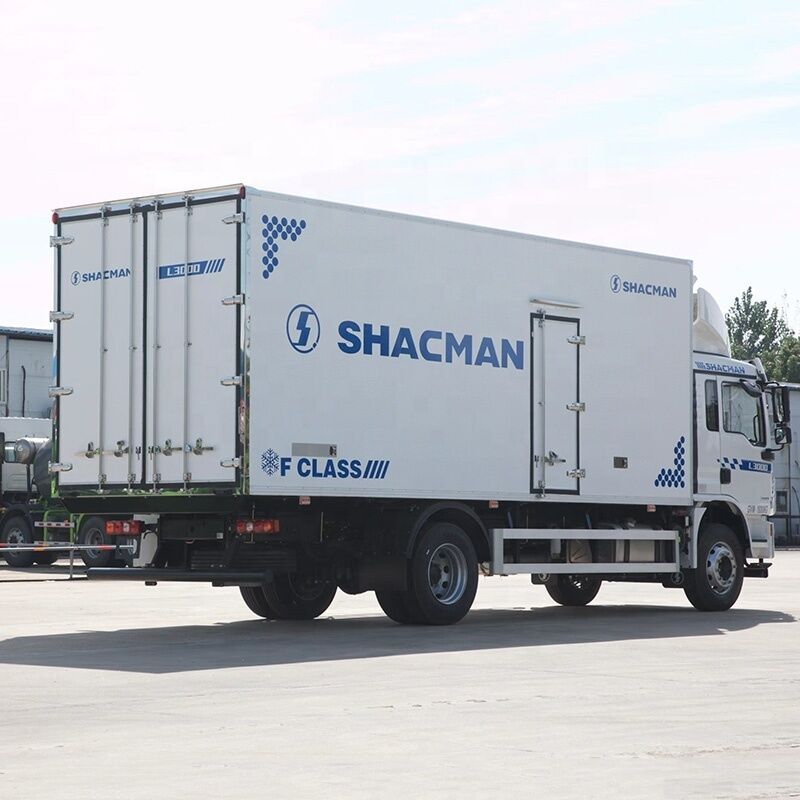

SHACMAN L3000 Series Refrigerated Trucks
Specialized enclosed transport vehicles designed to maintain stable temperature conditions for temperature-sensitive goods during transit. These refrigerated trucks feature insulated cargo compartments constructed with high-performance materials and reliable refrigeration systems, ensuring optimal preservation of frozen food, dairy products, fruits, vegetables, vaccines, pharmaceuticals, and other perishable items.
Key Features & Advantages
- Precise temperature control for optimal cargo freshness
- Excellent thermal insulation for energy efficiency
- Reliable SHACMAN chassis with powerful performance
- Intelligent management system for full traceability
- Ergonomic design for enhanced driving comfort
Technical Specifications
| Total Vehicle Specifications | |
|---|---|
| Overall Dimension | 6000x2350x3650mm |
| Cargo Van Box Size | 9100x2550x3910mm |
| Maximum Speed | 90km/h |
| Color & Logo | Customizable to customer requirements |
| Chassis Specifications | |
| Driving Style | Left or right hand drive available |
| Driving Type | 4x2, 6x4/8x4 configurations |
| Engine | WEICHAI WP6.210E32, 210HP/154KW |
| Frame | 870x250(7+4)mm |
| Wheelbase | 3600mm |
| Vehicle Speed Ratio | 10T single-stage bridge 5.125 |
| Emission Standard | EURO 3 |
| Suspension | Front and rear multi-leaf springs |
| Cab | SHACMAN single row cab, 3 seats |
| Refrigerator Van Box Specifications | |
| Body Size | 3800x2400x2500mm |
| Load Capacity | 10-12 tons |
| Panel Construction | Fiber glass sandwich polyurethane |
| Insulation Layer Thickness | 8mm |
| Lifting Device Material | Q235 High strength steel |
| Rear Door Type | Full Size Double Opening Rear Door |
| Flooring | Anti-skid and wear-resistant patterned aluminum plate |
| Refrigeration Unit | Imported Carrier D6 |
| Refrigeration Temperature Range | -5°C to 15°C |
Product Details
Manufacturer Profile
Henan Senyao Heavy Truck International Trade Co., Ltd. specializes in the export integration of Shaanxi Automobile Heavy Truck, special vehicles, and construction machinery. As a global export authorization enterprise of Shaanxi Automobile Heavy Truck, we maintain a strategic policy of "mutual benefit, honesty and win-win," building an extensive sales network across Central Asia, Africa, and Central and South America. With an annual export capacity exceeding 3,000 units, Senyao's product quality and service have earned recognition from customers worldwide.
Packaging & Shipping
We provide professional export packaging that ensures weather-proof and secure transportation. Multiple shipping methods are available including RORO, container, or bulk vessel options. With experience shipping to over 50 countries worldwide, we offer complete export documentation support for seamless international delivery.
Purchase Guidance
Step 1: Define Your Requirements
Goods Transportation Requirements
Identify the type of goods you'll be transporting: frozen (requiring -18°C or below), refrigerated (0°C to 8°C), or fresh produce (0°C to 15°C). Consider the value and temperature sensitivity of your goods, as this determines the required performance grade of the refrigeration unit and insulation.
Transport Scale & Frequency
Determine your single load capacity and total weight requirements, along with transport distance and frequency. This information helps select the appropriate chassis size, cargo box dimensions, and determines requirements for chassis power, unit endurance, and reliability.
Chassis & Licensing Requirements
Consider license plate requirements (blue plate for easier urban access or yellow plate for higher capacity) and common road conditions (urban streets, suburbs, or highways) to determine chassis power, maneuverability, and vehicle dimension requirements.
Budget Considerations
Your budget will determine whether you can choose domestic, joint-venture, or imported refrigeration units, as well as the grade of body materials. Imported brands offer excellent reliability while domestic brands provide better cost-effectiveness.
Step 2: Confirm Refrigerated Truck Details
Refrigeration Unit Selection
Choose between independent units (with own engine, ideal for long-haul transport) or non-independent units (powered by vehicle engine, more cost-effective). Consider brand reputation, cooling capacity, temperature range, and control system features including remote monitoring capabilities.
Insulated Cargo Body Specifications
Evaluate body materials (polyurethane integral foam recommended), inner/outer skin materials (FRP, stainless steel, or aluminum alloy), insulation layer thickness (80mm, 100mm, or 120mm), and sealing details including door frame structure and floor design for optimal temperature maintenance.
Truck Chassis Requirements
Select appropriate chassis brand and model, ensuring the engine meets emission standards and the chassis has been reinforced specifically for refrigerated body applications to handle the additional weight and density of temperature-controlled cargo.
Pricing & Service Considerations
Request detailed price breakdowns including all components and services. Verify warranty terms for chassis, refrigeration unit, and body components, and confirm the availability and response times of service networks for all critical components.
Frequently Asked Questions
Q: How do I choose the right size refrigerator truck and refrigeration unit?
A: Body size should be determined by your daily freight volume and cargo density, considering legal size limits. For the refrigeration unit, select one level more powerful than your theoretical minimum requirement, considering temperature range requirements, body size and insulation performance, and frequency of door openings.
Q: How can I ensure my goods maintain the correct temperature for the entire trip?
A: Pre-cool the empty truck body to target temperature before loading, ensure proper airflow by leaving space between cargo and walls, minimize door open time during loading/unloading, and consistently use temperature monitoring equipment to track conditions throughout the journey.
Q: Do you provide training for operators and maintenance personnel?
A: Yes, we provide detailed operation and maintenance manuals and can arrange training sessions at the manufacturing site or provide video training materials. For overseas projects, on-site training and commissioning can be discussed.
Q: What are the warranty terms for the refrigerated truck?
A: The warranty period is typically 12 months from shipment date or arrival at destination port. The warranty covers defects in materials and workmanship under normal use, with specific terms detailed in the sales contract.
Q: Can the refrigerated truck be customized for specific needs?
A: Absolutely. We offer customization options including cargo tank capacity adjustments, color and logo customization, and specific equipment compartments to meet unique customer requirements.
Q: What about the supply of spare parts?
A: We maintain a reliable supply chain for SHACMAN chassis parts and work with OEMs to ensure genuine spare part availability for refrigeration system components. We also provide support in identifying local parts suppliers where possible.
Q: Which payment terms can you accept?
A: We accept T/T terms (30% down payment, 70% balance before shipment), L/C terms (100% irrevocable L/C from recognized banks), VISA, and PayPal. Specific payment arrangements can be discussed with your sales manager.
