Medium Scale Compressed Garbage Trucks Large Scale Medium Sized Garbage Trucks
Basic Properties
Place of Origin:
SHAANXI,XIAN
Brand Name:
SHACMAN
Trading Properties
Minimum Order Quantity:
1
Price:
Negotiable
Specifications
| Color: | White | Video outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Core Components: | Engine, Gearbox |
| Drive Wheel: | 4X2 | Type: | Compactor |
| Transmission Type: | Manual | Emission Standard: | Euro 2 |
| Fuel Type: | Diesel | Engine Capacity: | >8L |
| Size: | 8250x2500x3250mm | Gross Vehicle Weight: | 18000 |
| Warranty: | 1 Year | Weight (KG): | 8500 Kg |
| Engine Type: | WEICHAI, 210hp, 230hp, 240hp, 300hp | Cabin Color: | White, Red, Green, Can Be Customized |
| Wheelbase: | 3600mm, 4000mm, 4375+1400mm, 5000mm | Fuel Tank: | 200L Iron/300L Aluminum Alloy |
| Tire: | 10.00R20, 6pcs With One Spare Tire | Max. Driving Speed: | 90km/h |
| Compression Box Volume: | 8m³/10m³/12m³/14m³/16m³/20m³ | Compression Ratio: | ≥2.5 |
| Time of Filling Cycle Once: | ≤25s | Unload Garbage Time: | ≤45s |
| High Light: | medium scale compressed garbage trucks,large scale garbage trucks,compactor garbage truck with warranty |
||
Product Description

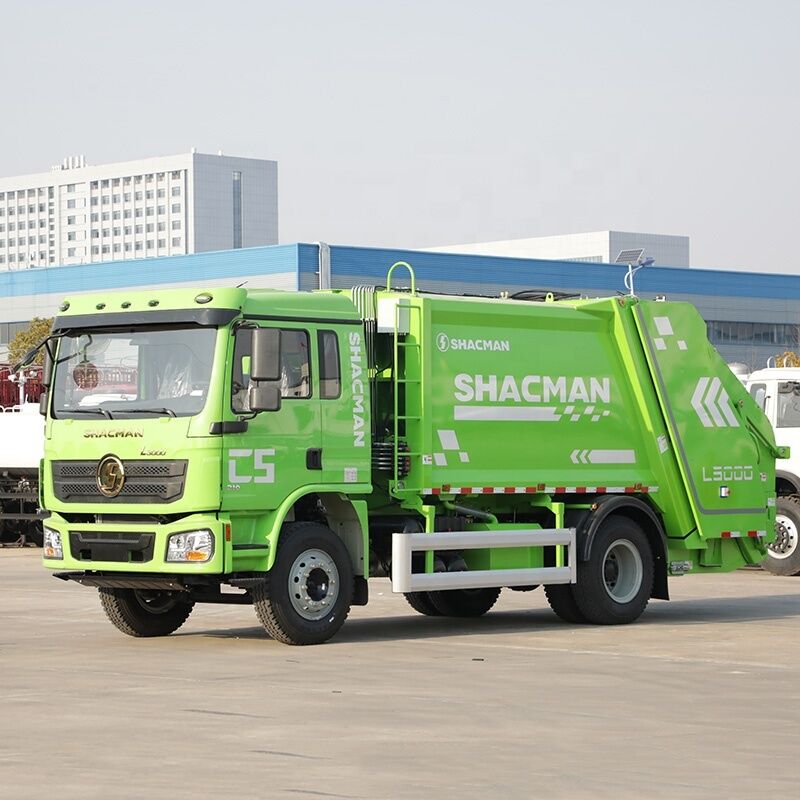

SHACMAN L3000 Series Compressed Garbage Trucks
Compactor garbage trucks, also known as compressed or compression garbage trucks, are essential vehicles in modern waste management. These specialized trucks efficiently collect, compress, and transport waste materials, significantly enhancing garbage disposal processes.
We provide high-quality SHACMAN compactor garbage trucks designed for municipal sanitation, industrial parks, towns, and scenic spot waste collection and transportation. Utilizing advanced compression technology, they ensure efficient, environmentally friendly, and reliable operational performance to meet diverse international customer needs.
SHACMAN Compactor Garbage Truck Advantages
- High Efficiency Compression
- Environmentally Friendly & Leakage-free
- Automated Operation
- Economical & Durable
- Multi-scenario Application
Technical Specifications
Chassis System
| Truck Brand | SHACMAN L3000 Series Compressed Garbage Trucks |
| Steering Style | Left hand drive or right hand drive |
| Driving Type | 4x2 |
| Engine Brand | WEICHAI |
| Engine Power | 210hp, 230hp, 240hp, 245hp, 300hp |
| Emission Standard | EURO 2 |
| Fuel Tank | 300L aluminum alloy |
| Frame | 870x250(7+4)mm |
| Wheelbase | 3600mm |
| Tire | 10.00R20, 12.00R20 |
Upper Part (Compression Bin)
| Tank Volume | 8m³, 10m³, 12m³, 14m³, 16m³ |
| Compression Box Shape | Curved/square box body |
| Compression Ratio | ≥2.5 |
| Bucket Flipping Type | 120/240/660/1100L drum |
| Flip Option | Triangle bucket/Full floor bucket/Swing arm device |
| Bucket Flipping Mechanism | Rear tail with bucket flipping mechanism |
| Effective Volume of Filler | ≥1.8m³ |
| Capacity of Sewage Tank | Front sewage tank 300L, Rear sewage tank 500L |
| Time of Filling Cycle Once | ≤25s |
| Unload Garbage Time | ≤45s |
| Control Mode | Automatic+manual+Wireless remote control |
| Control System | CAN-BUS bus control |
Shipping & Delivery
- Export Packaging: Weather-proof covering and secure loading
- Shipping Methods: RORO, container, or bulk vessel
- Delivery Time: 20-40 days after order confirmation
- Documentation support: Complete export documentation provided
Frequently Asked Questions
Q1: What is the compression ratio and loading capacity of SHACMAN compactor garbage trucks?
A: SHACMAN compactor trucks typically have a compression ratio higher than 2.5:1, with some models reaching 3.8:1. The effective volume is generally above 6-8 cubic meters (after compression), and the rated load capacity is around 8-10 tons (depending on chassis and design). This means they can hold significantly more waste than ordinary non-compacting garbage trucks.
Q2: Will there be sewage leakage during transportation?
A: Absolutely not. This is a top priority in our design. The truck features a fully sealed body, multiple sealing strips, and a dedicated large-capacity sewage collection tank, ensuring all wastewater generated during compression and transportation is completely contained, effectively eliminating secondary pollution.
Q3: Is the operation complicated? Does it require special training?
A: The operation is very simple. It is primarily controlled via a PLC one-touch control panel located in the cab or at the rear of the truck. The high level of automation means usually only one driver is needed for all operations. We provide detailed operational training upon delivery.
Q4: What customization options are available?
A: We can provide various customizations based on your requirements, including but not limited to: (1) Chassis brand and model (e.g., SHACMAN, Dongfeng, SINOTRUK HOWO, etc.), (2) Power type (Diesel / Pure Electric), (3) Loading method (Hanging bucket, Shovel bucket, Swing arm, etc.), (4) Volume and loading capacity, (5) Special options: Weighing system, Remote monitoring, High-pressure cleaning, Air conditioning, Explosion-proof, Special anti-corrosion treatment, Configurations for extreme climates (high temperature, cold, sandstorm).
Q5: What is the warranty policy and after-sales service like?
A: We provide comprehensive warranty and service support. Typically, the whole vehicle or the body part comes with a 1-year or a certain number of operating hours warranty (specific terms need confirmation). We have service networks or partners in multiple regions overseas capable of providing timely after-sales service, technical support, and spare parts supply to ensure your vehicles operate efficiently.
