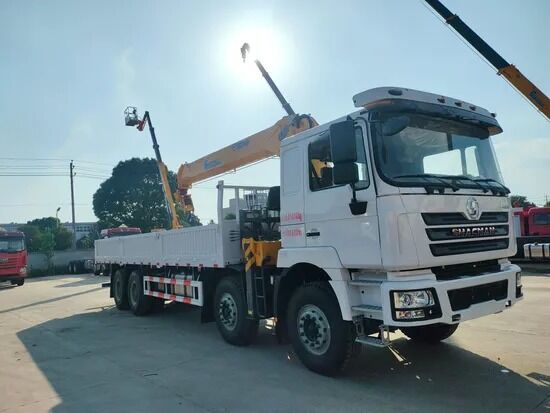

Shacman F3000 8X4 Crane Truck Euro 2

Basic Properties

Place of Origin: SHAANXI,XIAN

Brand Name: SHACMAN

Certification: CE

Trading Properties

Minimum Order Quantity: 1

Price: Negotiable

Straight boom truck with warranty

Euro 2 crane truck

Specifications

Model NO.:	F3000 8X4	Condition:	New
Maximum Lifting Height:	>40m	Maximum Lifting Weight:	>16t
Shaft Number:	3	Crane Jib:	Five-Arm
Type:	Straight Arm	Tire:	12.00r20
Oil Tank:	300L Aluminum Alloy Oil Tank	Suspension:	Front And Rear Multi-Spring Four Main Plate + Four
Front Axle:	Man9.5t	Axle Speed Ratio:	Man16t Two-Stage Axle Speed Ratio 5.262
Transmission:	10jsd180+Qh50	Engine:	Wp10.380e22
Transport Package:	Roll-Roll	Specification:	50t
Trademark:	SHACMAN	Origin:	Xi'an City, Shaanxi Province, China
HS Code:	8704230090	Production Capacity:	500pieces/Years
High Light:	Shacman F3000 8X4 crane truck , Straight boom truck with warranty , Euro 2 crane truck

Product Description

Shacman F3000 8X4 Crane Truck Euro 2

SHACMAN QUALITY • CHINESE SPEED
Industry Optimal Power Assembly • Weichai Engine • Fast Transmission • Hande Axle

As an official Shacman manufacturer, we provide various dump trucks with competitive pricing and superior quality. Our comprehensive after-sales service ensures complete customer satisfaction. Contact us to customize your ideal truck solution.

Customization Options

Engine: Weichai or Cummins options available. Cummins offers superior performance but limited serviceability. Weichai provides strong power with better maintenance support.
Gearbox: FAST manual or EATON ATM transmission systems
Lifting System: HYVA or Chinese brand hydraulic systems
Dumper Size: Customizable height and thickness dimensions
Cab: F3000, H3000, or X3000 series (X3000 premium, F3000 popular, H3000 economical)
Tire: Fully customizable tire specifications
Oil Tank: Customizable fuel tank capacity
Color: White, Red, Orange, Green, Blue options
Spares: Additional features including camera, radar, daylight systems

All specifications can be customized to meet your specific requirements. Contact us for detailed proposals and satisfactory solutions.

Technical Specifications

Model	SX5315JSQDT456
Driver Position	Left Hand
Cab	Medium length flat top
Driving Type	8×4
Wheelbase	2100+4575+1400
Max Speed	80 km/h
Engine	Brand: WEICHAI
	Model: WP10.380E22
	Emission Standard: EURO 2
	Rated Output Power: 380HP / 294KW
	Displacement: 9.726L
Transmission	Brand: FAST
Transmission	Model: 10JSD180+QH50
Front Axle	Brand: HANDE
Front Axle	Model: MAN 9.5T
Rear Axle	Brand: HANDE
Rear Axle	Model: 16T MAN double reduction driving axle (Speed ratio 5.262)
Clutch	¢430 diaphragm clutch
Frame	850×300(8+5+8)
Suspension	Multiple leaf springs front and rear / four main spring + four bolts
Fuel Tank	300L Aluminum alloy
Wheels and Tires	12.00R20(12+1)
Brakes	Running Brake: Dual circuit compressed air brake
	Parking Brake: Air discharging with spring control
	Auxiliary Brake: Engine exhaust brake

Standard Cabin Features

Hydraulic main seat, four-point hydraulic suspended cab, sunshade, electrically controlled automatic constant temperature air conditioning, electric window shaker, manual flipping, ordinary central air filter, metal bumper, hinged boarding pedal, 165Ah maintenance-free battery, spare tire rack, SHACMAN logo, American logo, remote throttle controller (electronic engine).

Product Overview

A dump truck features an elevated front-end box that allows contents to be dumped out the back. These vehicles are ideal for transporting construction waste, sand, gravel, and similar materials.

SHACMAN offers five dump truck series (X3000, F3000, H3000, F2000, L3000) to meet diverse customer requirements. From standard tippers to specialized vehicles for demanding applications, our qualified professionals can help you select the perfect vehicle for any job.
