| Brand Name: | SHACMAN |
| Model Number: | F3000 6×4 Dump Truck |
1. Product Attribute Table
| Attribute Item | Specification Content |
|---|---|

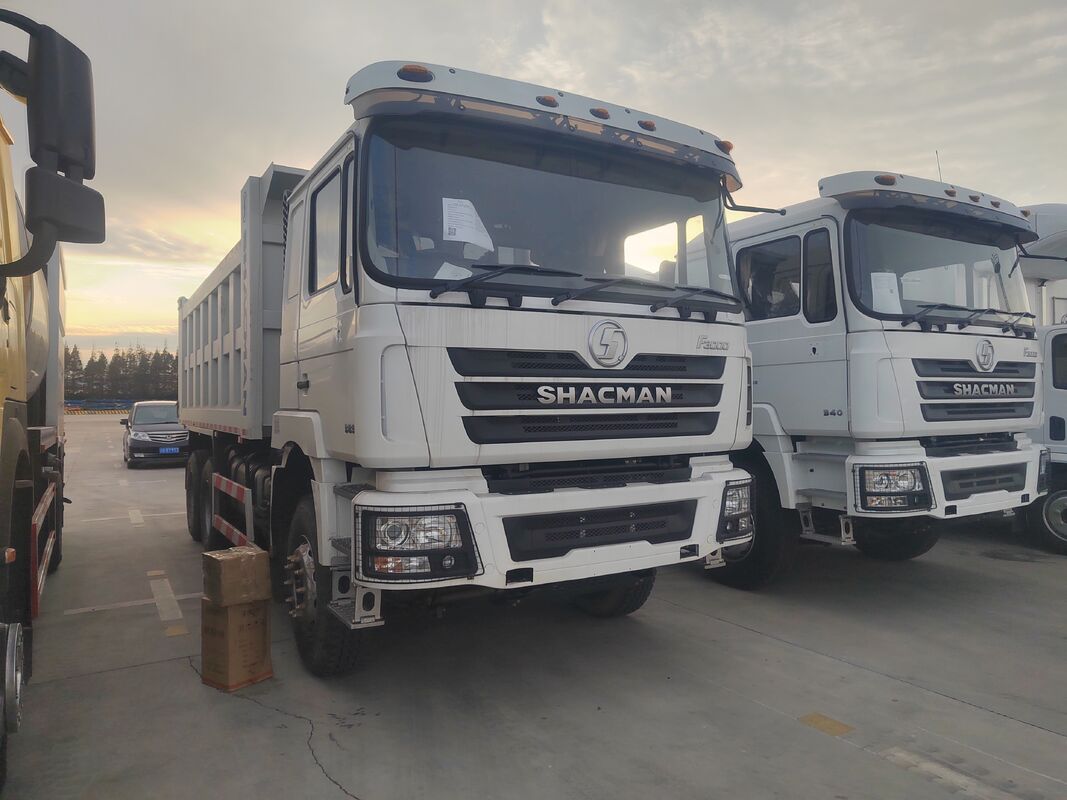

| Product Name | 6×4 Heavy Duty Dump / Tipper Truck |
| Brand | SHACMAN |
| Platform | F3000 |
| Version | Heavy Duty Reinforced Version |
| Drive Mode | 6×4 |
| Engine Model | WP10.336E32 |
| Rated Power | 336HP |
| Emission Standard | Euro 2/3 |
| Transmission | 12-speed Manual with QH50 PTO |
| Rear Axle | 16T HD Double Reduction Axle, Final Ratio 4.769 |
| Front Axle | HD 9.5 Ton |
| Wheelbase | 3775+1400 mm |
| Frame Dimension | 850×300 mm (8+7 Reinforced) |
| Fuel Tank | 500L Aluminum Alloy |
| Max Speed | 90 km/h |
| Cab Type | Medium-long Flat Roof Cab |
| Suspension | Multi-leaf Spring (4 Main + 4 U-bolts) |
| Tire Spec | 12.00R20 Mixed Pattern Heavy Duty |
| Cargo Box Size | 5400×2300×1100 mm |
| Chassis | Reinforced Frame with Box-type Cross Members |
If you have been around job sites you have seen F3000s everywhere. The 6×4 chassis on this version gets the reinforced treatment — 850×300 mm frame with 8+7 layered construction plus box-type cross members. When you are dumping a full load on uneven ground the frame does not twist. That is where cheaper trucks fall apart and the F3000 keeps going. Hydraulic driver seat, electronically controlled AC, electric windows, metal bumper with lamp protection mesh, three-stage boarding steps, single oil bath air filter, and 180Ah battery all standard.
Comes with WABCO 4-channel ABS, iron air reservoir, reverse buzzer, 2KG fire extinguisher, daytime running lights, rear stabilizer bar, deluxe tool kit, work lamps and safety belts. Suspension, axles, transmission — all spec'd to handle overloads without drama. Fleet operators like these because they stay on the road and parts are cheap when something does need fixing. No fancy electronics, just stuff that works. Standard export documentation with English/Spanish labeling.
Optional 600L aluminum alloy fuel tank, heavy-duty mining tires, rear underrun protection, cab rollover protection structure, winterization package, and other customized parts per destination market.
