Low Fuel Consumption Shacman F3000 6X4 8X4 Dump Truck Diesel Right Steering Automatic Manual Heavy Tipper Tipping Dumper Truck
Basic Properties
Place of Origin:
SHAANXI,XIAN
Brand Name:
SHACMAN
Trading Properties
Minimum Order Quantity:
1
Price:
Negotiable
Specifications
| Condition: | New | Steering: | Left, ZF Technology |
| Horsepower: | 351 - 450hp | Emission Standard: | Euro 2 |
| Segement: | Heavy Truck | Market Segement: | Engineering Transportation |
| Engine Brand: | Weichai | Fuel Type: | Diesel |
| Engine Capacity: | > 8L | Cylinders: | 12 |
| Gear Box Brand: | FAST | Transmission Type: | Manual |
| Forward Shift Number: | 10 | Reverse Shift Number: | 2 |
| Maximum Torque(Nm): | 1500-2000Nm | Dimensions (L x W x H) (mm): | 5800x2300x1500mm |
| Cargo Tank Dimension: | 5800x2300x1500mm | Cargo Tank length: | 5.3-6.2M |
| Gross Vehicle Weight: | 15-20T | Capacity (Load): | 21 - 30T |
| Fuel Tank Capacity: | 300-400L | Drive Wheel: | 6x4/8x4 |
| Passengers: | 2 | Driver's Seat: | Air Suspension |
| Rear Camera: | Camera | Touch Screen: | Yes |
| Air Conditioner: | Manual | Tire Number: | 10 |
| After-sales Service Provided: | Video Technical Support, Online Support | Product name: | Low Fuel Consumption Shacman F3000 6X4 8X4 Dump Truck |
| Wheelbase: | 3975+1400mm/1800+3975+1400mm | Max. Speed: | 75km/h |
| Front/Rear Axle: | HANDE | Clutch: | 430 Diaphragm Clutch |
| Suspension: | Front And Rear Multi-leaf Spring, Four Main Plates+four Horse Bolts | Tires: | 12.00R20 10+1/13R22.5 12+1 |
| Cab: | Standard Flat Cab(Optional) | Color: | Customer's Request |
| High Light: | Shacman F3000 dump truck,6X4 diesel tipper truck,right steering dumper truck |
||
Product Description

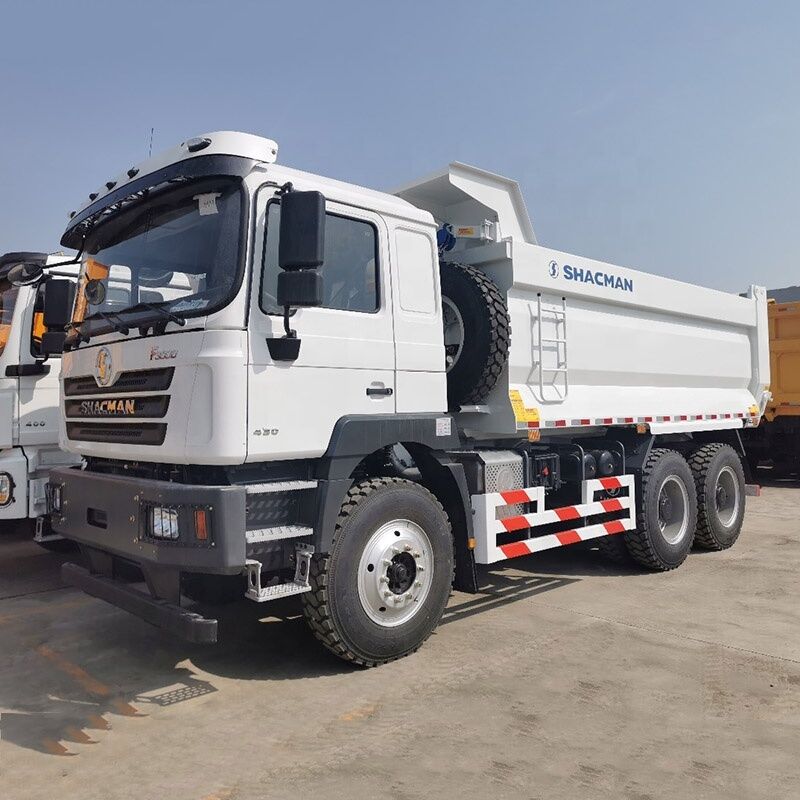

SHACMAN F3000 Series Heavy Duty Dump Trucks
The SHACMAN F3000 dump truck utilizes engine power to drive hydraulic lifting mechanisms, enabling efficient cargo unloading through controlled tilting of the carriage. Designed for transporting construction materials, sand, gravel, coal, ore, and industrial waste, these robust vehicles combine power with operational efficiency.
Available Configurations
- Truck Chassis: SHACMAN (Alternative brands: Dongfeng, FAW, FOTON, ISUZU, SINOTRUK HOWO, JAC)
- Drive Configuration: 4x2, 6x4, 8x4
- Load Capacity: Standard (25-40t), Composite (40-60t), Heavy (60-80t), Extra Heavy (80t+)
- Applications: Urban construction, road transport, mining operations, material handling
- Lifting Mechanism: Front lift (primary), side lift, center lift options
- Cargo Box: Custom dimensions available based on requirements
Technical Specifications
| Feature | 6x4 Model | 8x4 Model |
|---|---|---|
| Driving Style | Left hand drive/Right hand drive | |
| Wheelbase | 3975+1400mm | 1800+3975+1400mm |
| Max. Speed | 75km/h | |
| Fuel Type | Diesel | |
| Engine Model | WEICHAI | |
| Transmission | FAST | |
| Power Output | 279KW/380HP | 294KW/400HP |
| Front/Rear Axle | HANDE | |
| Steering | ZF technology | |
| Frame | 850x300(8+7)mm | |
| Fuel Tank | 400L Aluminum alloy | 380L Aluminum alloy |
F3000 6x4 10-Wheel Dump Truck
F3000 8x4 12-Wheel Dump Truck
About Henan Senyao Heavy Truck International Trade Co., Ltd.
As an authorized global export partner for Shaanxi Automobile Heavy Truck, we specialize in the integration and export of heavy trucks, special vehicles, and construction machinery. With an annual export capacity exceeding 3,000 units, our products and services have earned international recognition across Central Asia, Africa, and Central/South America.
As an authorized global export partner for Shaanxi Automobile Heavy Truck, we specialize in the integration and export of heavy trucks, special vehicles, and construction machinery. With an annual export capacity exceeding 3,000 units, our products and services have earned international recognition across Central Asia, Africa, and Central/South America.
Export & Delivery Services
- Professional export packaging: Weather-proof and secure
- Multiple shipping methods: RORO, container, or bulk vessel
- Worldwide delivery: Experience shipping to 50+ countries
- Documentation support: Complete export documentation provided
Frequently Asked Questions
Q1: What is the warranty period for SHACMAN dump trucks?
A: We offer 12 months warranty (without mileage limit) for our dump trucks.
Q2: Can you provide right-hand drive versions?
A: Yes, we can supply both left-hand and right-hand drive configurations.
Q3: Do you provide custom body sizes?
A: Yes, we can customize body sizes from 20m³ to 30m³ based on your requirements.
Q4: What's the maximum gradeability?
A: Our dump trucks can handle gradients up to 35% depending on load conditions.
Q5: Do you provide operator training?
A: Yes, we provide comprehensive operation and maintenance training.
Q6: What payment terms do you accept?
A: We accept T/T, L/C, and other flexible payment methods.
Q7: What's the delivery time for bulk orders?
A: For orders of 10+ units, delivery time is 45-60 days.
Q8: Can you provide mining-specific configurations?
A: Yes, we offer reinforced frames, heavy-duty axles, and enhanced cooling systems for mining applications.
Selection Guide: Choosing the Right Dump Truck
Step 1: Define Your Operational Requirements
Primary Cargo Type:
- Sand, gravel, earth: Heavy materials requiring maximum vehicle load-bearing capacity and structural strength
- Coal, ore: Heavy and potentially corrosive materials demanding high wear resistance and thicker steel plates
- Construction waste, muck: Mixed debris requiring impact-resistant bodies and sometimes covered/sealed tops
- Grain, feed: Lightweight bulk cargo requiring high-volume, sealed bodies with moderate load-bearing requirements
Load Specifications:
Determine the typical weight and volume of your cargo to select appropriate rated load mass (tonnage) and body volume (cubic meters). Ensure compliance with standardized legal load weights.
Operating Environment:
- Highway/Urban roads: Require environmental compliance, noise control, and emission standards; often benefit from U-shaped environmentally friendly containers
- Construction sites, mining areas: Demand high passability and reliability with engineering chassis (reinforced frame, heavy-duty axles, off-road tires)
- Mountainous/Hilly terrain: Require high horsepower engines, substantial torque, and advanced brake cooling systems (hydraulic retarders)
Budget Considerations:
Dump truck pricing ranges from $30,000 to $120,000+, depending on chassis brand, engine specifications, body size, and structural strength requirements.
Step 2: Key Technical Questions for Suppliers
A. Chassis and Powertrain Specifications
- Chassis Brand & Model: SHACMAN chassis with alternative brand options available
- Engine Requirements: Select horsepower (210-520HP) based on application; Weichai engines recommended for heavy-duty use
- Transmission: FAST multi-gear manual transmissions (10-speed, 12-speed) for durability and high torque capacity
- Hydraulic Retarder: Essential for mountainous operations to enhance downhill safety
- Axle Configuration: HANDE engineering axles with appropriate gear ratios for specific terrain requirements
- Chassis Reinforcement: Double-layer frame construction and multi-leaf spring suspension for heavy-duty applications
B. Superstructure Specifications (Body & Hoisting System)
- Body Design: U-shaped environmentally friendly containers with high-strength wear-resistant steel (T700 grade)
- Hoisting Mechanism: Front tipping (primary), middle tipping, or side lift options available
- Hydraulic System: Quality gear pumps with optimized hoisting time for safety and efficiency
