| Brand Name: | SHACMAN |
| MOQ: | 1 |
| Price: | Negotiable |
| Delivery Time: | 35-55days |
A farm, a construction yard and a mine share a problem: things need moving that are not road-legal trailers. Grain carts, low loaders, water bowsers, equipment skids. A tow tractor that can hook, pull and reposition those loads without a road registration argument is a working tool in all three sectors.
This X3000 6x4 tow tractor lorry uses a 3175 + 1400 mm wheelbase for tight yard work, an 850 x 300 (8+5) mm frame, a MAN 7.5T front axle, multi-leaf springs front and rear, a 400 L aluminium alloy tank and a Weichai diesel at 380HP through a 12JSD200T-B twelve speed manual gearbox.
Vehicle data| Drive | 6x4, wheelbase 3175 + 1400 mm |
|---|---|
| Engine | Weichai diesel, above 8 L, 380HP |
| Gearbox | 12JSD200T-B manual |
| Frame | 850 x 300 (8+5) mm |
| Front axle | MAN 7.5T |
| Suspension | Multi-leaf spring |
| Fuel tank | 400 L aluminium |
| Tyres | 12.00R20 mixed pattern |
| Max speed | 75 km/h |
| Load rating | 21-30 t |
Tell us what you intend to tow, how it couples and where it moves, and we will confirm the frame, coupling and driveline for that duty.
Coupling choice drives the frame loadsA tow tractor pulling on a drawbar loads the frame in a different direction to one carrying a trailer on a fifth wheel. Drawbar pulling puts tension along the chassis rails and a vertical download at the hitch, while a fifth wheel puts the load directly on the rear axle. The frame, the hitch mounting and the brake connections all follow from that choice, so it has to be decided before the chassis is built.
Tell us what you intend to tow, how it couples and whether the towed item has its own brakes, and we will confirm the hitch, frame reinforcement and brake connections for that duty.
For buyers running all three sectors, it is worth deciding whether one specification has to serve them or whether two units with different couplings would work better. The answer usually depends on how often the coupling actually changes.

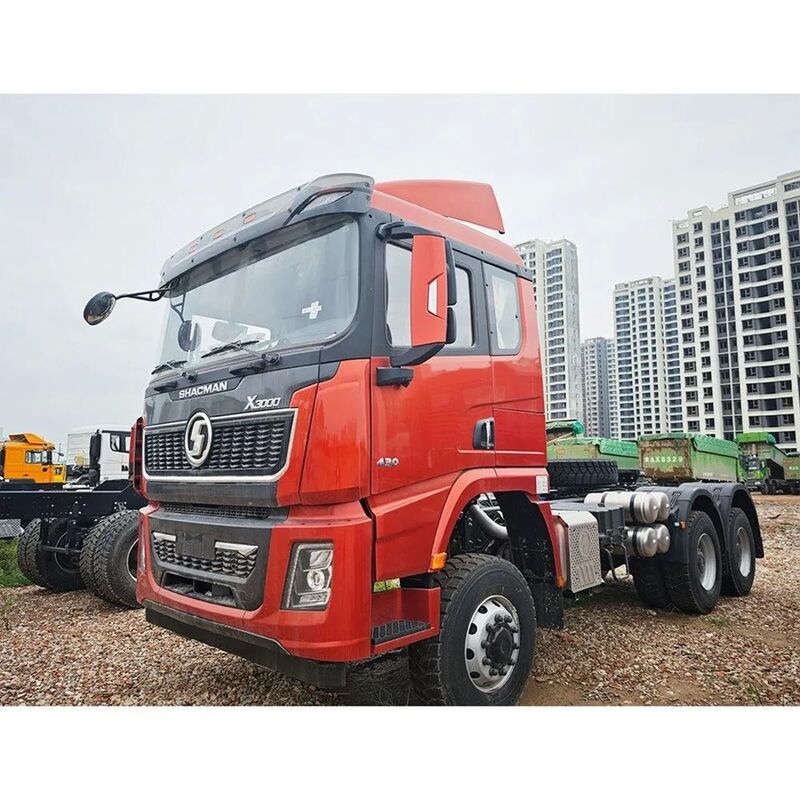

Product photos
