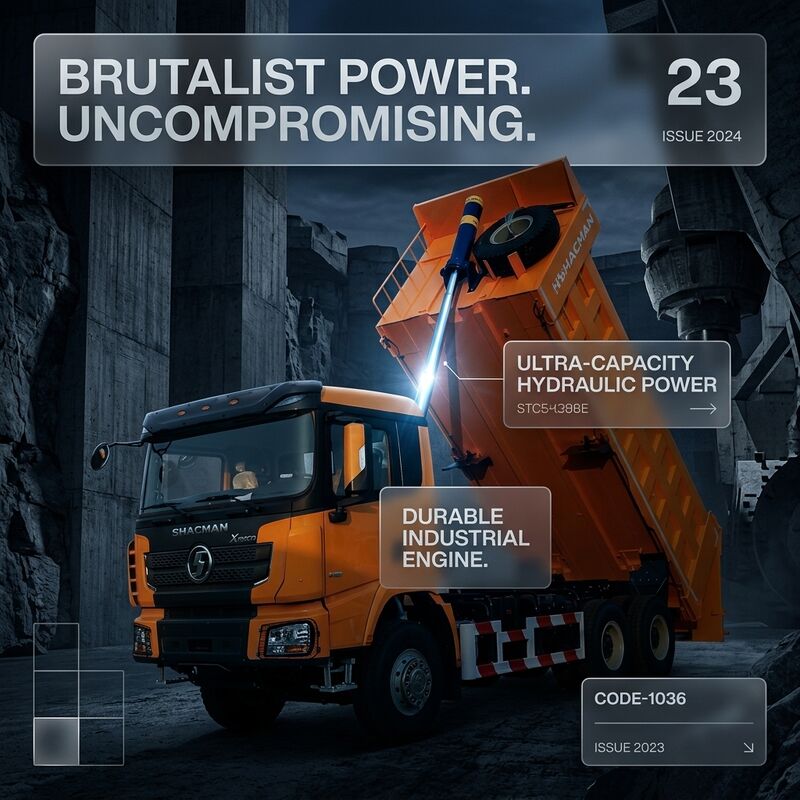

Construction Mining 25 Ton Dump Truck 6x4 Drive Cummins Diesel Engine Shacman X3000 Heavy Duty Tipper Vehicle

The Shacman X3000 25 Ton Mining Dump Truck represents the upper tier of conventional tipper truck capacity, purpose-configured for high-productivity mining operations, large-scale construction earthmoving projects, and heavy quarry aggregate haulage. Powering this formidable 6x4 workhorse is the globally proven Cummins ISM385 10.8-liter inline-six turbocharged diesel engine, delivering 385HP with the legendary durability and fuel system precision that have made Cummins the preferred power solution for mining operators worldwide. The 25-ton payload rating places this vehicle at the threshold between conventional dump trucks and specialized rigid mining haulers, offering operational flexibility that pure mining trucks cannot match, including the ability to travel on public roads between sites. Built on the same robust SHACMAN X3000 platform with a reinforced 850*300(8+7)mm double-layer frame and extended 3975+1400mm wheelbase, this specification incorporates enhanced engine cooling capacity, high-capacity air filtration, and heavy-duty drivetrain components selected specifically for sustained high-load operation in severe mining duty environments.

• Cummins ISM385 10.8L High-Pressure Injection Diesel Engine: The Cummins ISM series employs high-pressure common-rail fuel injection with full-authority electronic engine management, delivering clean combustion, optimized fuel economy, and consistent power output across varying altitude and temperature conditions. The 385HP output with 1835Nm peak torque provides authoritative grade-climbing capability with full 25-ton payload. Global Cummins service network ensures parts availability and technical support in virtually every mining region worldwide.
• 25 Ton Maximum Productivity Payload: The 25-ton load classification maximizes material moved per cycle, reducing total trips required for a given production target. This directly translates to lower fuel consumption per ton-kilometer, reduced operator hours per production volume, and improved overall fleet economics in high-volume mining and earthmoving operations.
• FAST 12-Speed Manual Transmission with Deep Reduction: Purpose-matched to the Cummins engine torque curve, the FAST 12-speed gearbox provides optimal ratio splitting across the entire operating speed range. The crawler gear delivers extreme reduction for starting on steep gradients with full load, while progressive ratio steps maintain engine speed in the peak torque band during acceleration through the gears.
• High-Capacity Cooling System: The enhanced radiator, charge-air cooler, and fan drive system is uprated to manage heat rejection under sustained full-power operation in high ambient temperature mining environments, protecting engine longevity and maintaining consistent performance during continuous shift operations.
• HANDE Heavy-Duty Axles with Forced Lubrication: The HANDE tandem drive axles feature an enhanced lubrication system with oil circulation to critical bearing surfaces, inter-axle and cross-axle differential locks, and hardened gear sets designed for the sustained torque throughput of loaded mine haulage cycles.
• Reinforced Double-Layer Frame with Mining-Spec Cross Members: The 850*300(8+7)mm frame incorporates additional internal reinforcement plates at high-stress zones including the suspension mounting brackets, dump body hinge points, and hydraulic cylinder anchor positions, providing extended fatigue life under the cyclic loading patterns characteristic of mining operations.
• Multi-Stage Air Filtration System: A cyclonic pre-cleaner with dual dry-element main filters provides exceptional dust separation efficiency, critical for engine protection in mining environments where airborne particulate concentrations far exceed on-highway conditions. Extended filter service intervals reduce maintenance downtime.

The 25-ton payload capacity positions this Cummins-powered mining dump truck at the forefront of heavy earthmoving productivity. In large-scale open-pit mining operations, it serves as the primary production haulage unit for overburden removal, ore transport from shovel faces to primary crushers, and waste rock disposal to dumps, with the 25-ton cycle payload delivering measurable cost-per-ton advantages over smaller capacity units. Major infrastructure construction projects including highway and railway earthworks, dam and reservoir excavation, airport grading, and deep foundation excavation benefit from the combination of high single-trip payload and the ability to transit on public roads between project phases without specialized heavy haulage permits. Quarry production rates are maximized when feeding high-capacity crushing plants with the 25-ton loads delivered at consistent cycle times. The Cummins engine's global service network is particularly valuable for mining operations in remote international locations, where dealer support infrastructure for alternative engine brands may be limited. The 6x4 configuration with full differential lock capability provides reliable traction on haul roads that may degrade during wet weather, while the reinforced frame and heavy-duty axles handle the cyclic loading and occasional shock loads inherent in excavator and front-end loader truck loading operations. For mining contractors operating across multiple sites and countries, the Cummins powertrain offers standardized maintenance procedures, familiar diagnostic protocols, and consistent parts supply channels across most global mining regions.

Each SHACMAN X3000 25 Ton Cummins-Powered Mining Dump Truck completes a rigorous pre-delivery inspection protocol including Cummins INSITE electronic diagnostic verification of all engine parameters, drivetrain alignment laser measurement, full brake performance testing on roller dynamometer, tipper hydraulic system pressure decay testing, and comprehensive road test under loaded conditions. Export preparation includes full anti-corrosion treatment of chassis and underbody components, vapor-phase corrosion inhibitor application to exposed machined surfaces, and marine-grade protective packaging for all electrical connections and sensors. Flexible shipping options include RORO drive-on/drive-off delivery for immediate operational deployment, containerized shipping with cab removal and component protection for cost-effective long-distance transport, or specialized flat-rack configurations with full weather protection for high-value unit shipments. Documentation package includes commercial invoice with HS code classification, detailed packing list, certificate of origin (Form E or equivalent), pre-shipment inspection certificate, Cummins engine warranty registration, and manufacturer warranty documentation. Our global after-sales support network provides technical assistance via video diagnostic support, regional spare parts warehousing with 48-hour express dispatch for critical components, and optional on-site commissioning and operator training services. Standard warranty coverage: 12 months or 30,000 kilometers. Extended warranty and service contract options available for fleet operators. Cummins engine warranty is additionally supported through the global Cummins authorized service network with over 6,000 dealer locations worldwide.
