Shacman F3000 6x4 Heavy Duty Dump Truck 340HP Weichai Diesel Engine for Mining Construction Transport

WEICHAI WP10.340E32 inline-6, 9.726-liter displacement, water-cooled, turbocharged and intercooled. Euro 2 emissions. These engines have been running in mines across multiple regions including Africa and Southeast Asia for over a decade. Parts are available in practically every market where Chinese trucks operate.

FAST 10-speed transmission with high-low range splitter. The ratios are spaced for loaded starts on grades and highway cruising when running empty between sites. Single dry clutch, diaphragm type, hydraulically operated with air assist.

The frame uses double-layer reinforced longitudinal members with riveted crossmembers. 7.5-ton rated front axle and dual 13-ton rear axles with inter-wheel and inter-axle differential locks. Front suspension is semi-elliptic leaf springs with shock absorbers. Rear is a balance shaft suspension with multi-leaf springs — simple, tough, and easy to rebuild when the bushings wear out.

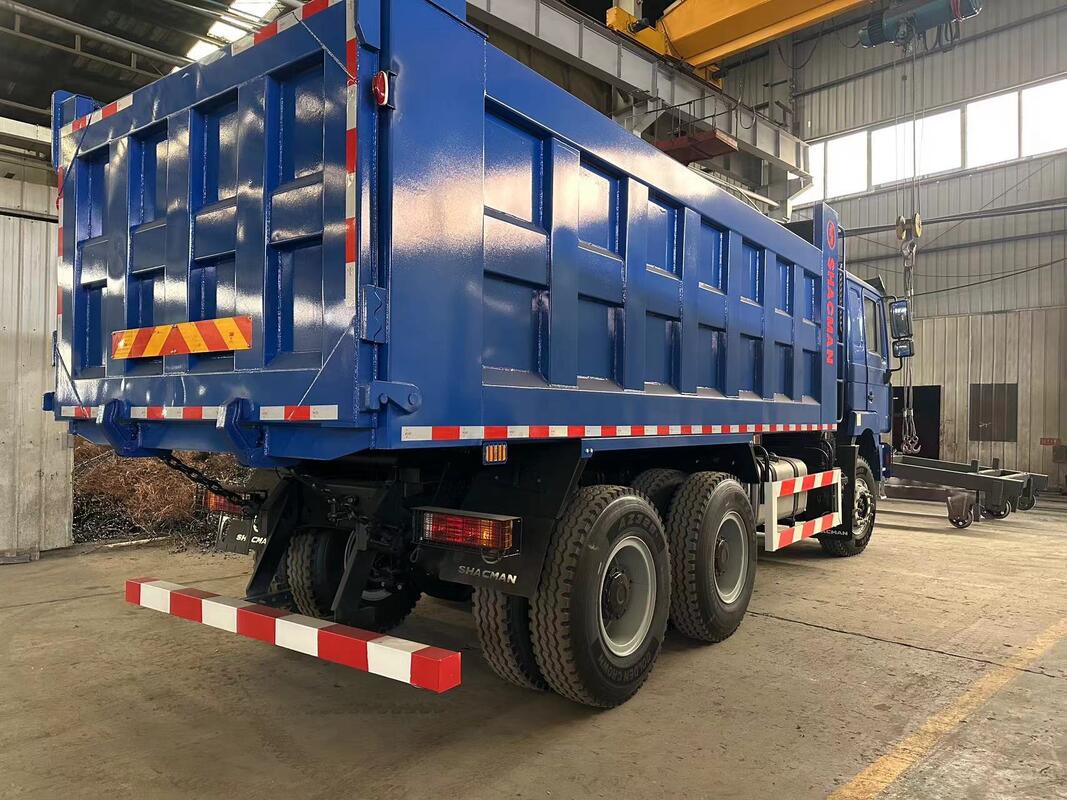

The dump body is a U-shaped or rectangular box in high-strength steel, floor thickness 8mm, side walls 6mm, with a bottom dump or rear tipping mechanism. HYVA or domestic hydraulic cylinder lifts the box in about 25 seconds under full load. The box can be customized for coal, ore, sand, gravel, or overburden — tell us your material and we will spec the right floor thickness and wear plate arrangement.

F3000 flat-top sleeper cab with hydraulic tilt. Adjustable driver seat with mechanical suspension. The dashboard is straightforward — analog gauges for speed, RPM, fuel, water temp, oil pressure, and air pressure. Air conditioning, heater, and radio are standard. Windows are electric. The cab tilts forward for engine access.

Dual-circuit air brakes with ABS on the rear axles. Engine exhaust brake for downhill control on mine ramps. Spring brake chambers on the rear for parking. Steel front bumper with integrated towing hook. Cab meets Chinese crash standards with reinforced A-pillars and a steel subframe.

Shacman F3000 6x4 Dump Truck Specifications

Parameter

SX3255DR384 F3000 6x4 Dump Truck

WEICHAI WP10.340E32, inline-6, turbocharged and intercooled

9.726 liters

340 HP (250 kW) at 2,200 rpm

1,250 Nm at 1,200-1,600 rpm

Euro 2

FAST 10JSD160, 10 forward + 2 reverse, synchromesh

Single dry plate, diaphragm type, 430mm, air-assist hydraulic

6x4 (rear tandem axle drive)

7.5-ton rated, forged I-beam

Dual 13-ton, hub reduction with diff locks

5.73 (other ratios available)

Semi-elliptic leaf springs with shock absorbers

Balance shaft with multi-leaf springs

Double-layer reinforced, riveted crossmembers, 300x80x(8+5)mm

F3000 flat-top sleeper, hydraulic tilt

Approximately 18-25 cubic meters (depends on box specification)

High-strength steel, floor 8mm / sides 6mm

Front-end hydraulic lift, HYVA-type cylinder

3,800 + 1,350 mm

12.00R20 radial, 10+1 spare

400 liters, steel

Dual-circuit air brakes, ABS (rear), engine exhaust brake

ZF hydraulic power steering

90 km/h (governed)

Up to 35% (loaded, low gear)

25,000 kg

Approximately 12,500 kg

Approximately 12,500 kg (varies by body configuration)

Approximately 8,500 x 2,500 x 3,450 mm

Ore, overburden, and waste rock hauling from the pit floor to the crusher or stockpile. The 6x4 drive handles loose surfaces and the reinforced box takes the impact of large chunks being dropped in by excavators.

Moving blasted rock from the bench to the crusher. Works alongside crawler drill rigs and excavators. The short wheelbase gives it decent turning radius on narrow quarry roads.

Earth moving on dam sites, highway projects, railway construction, and airport earthworks. Moves cut material to fill zones efficiently.

Coal mines, sand and gravel operations. The box can be fitted with a coal-specific body (higher sides, lighter construction) or a rock body (wear-resistant floor liner, thicker steel).

Port construction, river dredging support, foundation excavation hauling. The standard configuration handles most infrastructure material types.

How We Ship and Support

We can ship by Ro-Ro vessel (roll-on/roll-off, truck drives onto the ship), flat rack container (truck partially disassembled), or bulk carrier. Anti-corrosion spray applied before export. Full export documentation provided.

30 to 45 working days from deposit for standard configuration. If you need special box dimensions, liner plates, or different axle ratios, add about 10-15 working days.

12 months or 50,000 kilometers from commissioning, whichever comes first. Covers engine, transmission, axles, and frame structure. WEICHAI engine warranty is backed by authorized service centers in most markets.

Every truck ships with a basic tools and spares kit: fuel filter, oil filter, air filter, fan belt, wheel studs and nuts, brake chamber diaphragm, and a set of fuses. English operation manual included. Remote support available by video call for troubleshooting.

Loaded fuel consumption runs 32-38 liters per 100 km depending on terrain, load weight, and driving style. Empty return trips burn about 20-25 liters per 100 km. The 400-liter tank gives roughly a full shift of loaded-and-empty cycles in typical mine duty.

Euro 2 is accepted in many African, Middle Eastern, Southeast Asian, and Central Asian markets. Some South American countries still accept Euro 2 for mining vehicles registered for off-road use. If your market requires Euro 3 or higher, ask us about the F3000 Euro 3 variant with the WEICHAI WP10.336E32 engine.

Yes. We can adjust box length (5.6m to 7.2m), floor thickness (8mm, 10mm, 12mm), side wall thickness, add wear-resistant liners (HARDOX or domestic equivalent), change the dump direction (rear only or three-way), and add a tarpaulin cover system. Tell us your material type and cubic meter requirement.

Standard is left-hand drive. Right-hand drive is available for markets that require it — takes about 15 extra working days.

WEICHAI engines and FAST gearboxes are supported through dealer networks in Africa, Middle East, Southeast Asia, and South America. Chassis parts (springs, brake drums, bearings, seals) are industry-standard sizes. We keep a warehouse inventory of high-wear items and can air-freight critical parts within 5-7 working days.

Yes. We provide the commercial invoice, packing list, certificate of origin, and bill of lading. We can coordinate with your freight forwarder or recommend shipping agents experienced with truck exports to your destination country.

What is the payment structure?

Standard terms are 30% deposit with order confirmation, 70% balance before shipment. We accept T/T (bank wire) and irrevocable L/C at sight. Government procurement projects and repeat buyers can discuss alternative terms.

If you are pricing dump trucks for your mine, quarry, or construction fleet, send us your requirements. We need to know the material you are hauling, the typical haul distance and gradient, and the destination port. We will put together a configuration and detailed quotation including shipping.
