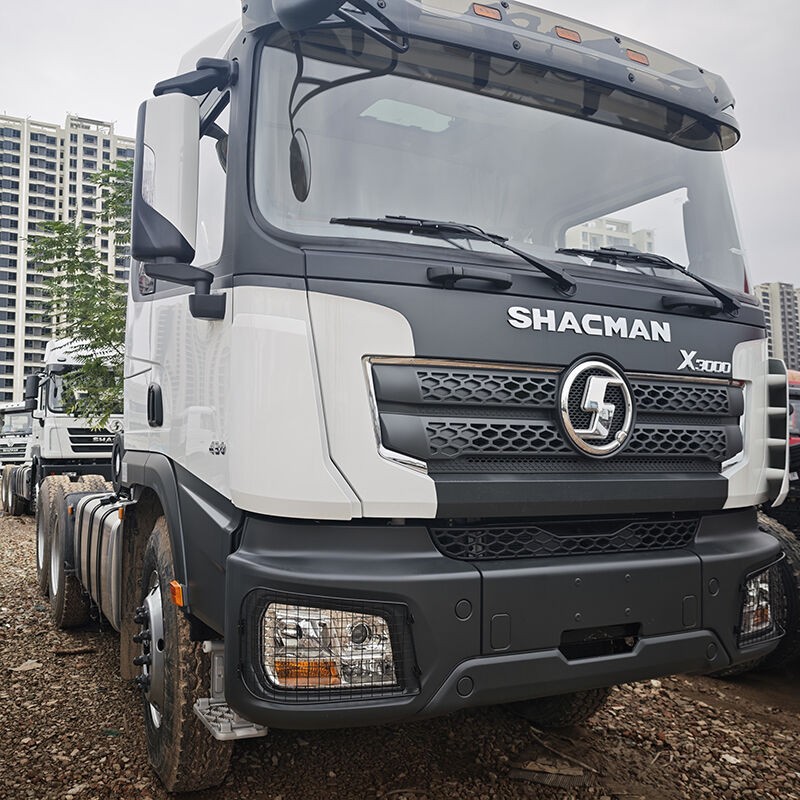

SHACMAN X3000 6x4 Tractor Truck 430HP Long-Haul Desert Cargo Transport Tractor Head WP12 Engine Euro 2

Product Overview

The SHACMAN X3000 6x4 Tractor Truck in long-haul desert specification is configured for fleet operators running high-mileage corridors across Africa and the Middle East. Unlike the mining variant with its dual-reduction axles and crawler gear, this configuration prioritizes highway fuel economy, sustained 80 km/h cruise capability, and thermal resilience in ambient temperatures routinely exceeding 45°C.

The defining feature is the Weichai WP12 Euro 2 mechanical injection engine — deliberately specified without common-rail electronics or SCR aftertreatment. For markets where diesel sulfur content ranges from 500 to 2,000 ppm (common across Sub-Saharan Africa and parts of the Middle East), this eliminates the two most common failure modes: HP pump seizure from poor fuel lubrication, and SCR catalyst poisoning from sulfur. It is not a downgrade — it is the correct engineering choice for the operating environment.

Key Features

• Weichai WP12.430E501 11.6L inline-6 with mechanical inline injection pump — no ECU, no common-rail sensors, no SCR
• 430HP and 2,060 Nm torque from 1,000 rpm with broad flat torque curve ideal for highway cruise
• FAST 12JSD200T-B 12-speed manual with 0.78 overdrive top gear — 80 km/h at 1,300 rpm
• Oversized cooling package: 1,050mm ring fan, large-area aluminum radiator, external engine oil cooler, transmission oil cooler
• Cyclone-type engine air pre-cleaner with desert-grade dual-stage dry air filter — extends filter service life 3x in sandy conditions
• 400L aluminum alloy fuel tank standard (600L optional) providing 1,100-1,600 km range between refueling stops
• High-roof sleeper cabin with independent diesel-fired cabin heater — essential for desert nights where temperatures drop sharply after sunset
• Sand-resistant radiator guard, high-temperature silicone hoses, and sealed IP67 electrical connectors throughout

Transportation Scenarios

Middle East Desert Transport

On routes connecting Saudi Arabia's inland cities (Riyadh-Jeddah-Dammam triangle), X3000 fleets haul 40-ton containerized and general cargo loads across highways where summer ambient temperatures hit 48-52°C with asphalt radiating additional heat. The oversize cooling system maintains stable coolant temperature at 88-92°C throughout 10-hour driving shifts. Operators report no derating events despite continuous full-load operation through the Empty Quarter corridor. The cyclone pre-cleaner ejects 85%+ of airborne sand before it reaches the primary filter element — critical in sandstorm season (March-August) when visibility drops below 500m.

African Long-Haul Corridors

On the 1,500 km Kampala-Juba corridor and the 1,200 km Lusaka-Dar es Salaam route, X3000 tractors carry containerized freight, bulk grain, and construction materials. Diesel quality varies from station to station — the mechanical injection pump tolerates sulfur content up to 2,000 ppm without degradation. Fleet managers report fuel consumption of 35-38 L/100km at 40-ton GCW on these mixed-condition routes (60% paved highway, 40% unpaved sections). The 12-speed overdrive transmission allows the engine to sit at 1,300 rpm at 80 km/h, right at peak torque, minimizing downshifts on gentle highway grades.

Port & Container Logistics

At East African ports (Mombasa, Dar es Salaam, Djibouti), the X3000 6x4 handles container chassis in both port-terminal shuttle and long-distance inland distribution. The JOST JSK37 cast steel fifth wheel handles 50+ coupling cycles daily without adjustment. The 3,175+1,350mm wheelbase balances maneuverability in container yards against highway stability at speed. Operators moving containers from Mombasa port to Nairobi ICD (Inland Container Depot) — a 480 km run with significant elevation gain — average 36 L/100km with 2x20ft loaded containers.

Heavy Cargo & Over-Dimensional Transport

For specialized transport of transformers, turbine components, and mining equipment on low-bed trailers, the X3000 platform supports GCW up to 65,000 kg. The frame's double-layer construction in the fifth-wheel zone handles concentrated vertical loads without fatigue cracking. Companies in Nigeria and Ghana use these units for moving oilfield equipment between Port Harcourt and inland drilling sites, where road conditions deteriorate severely during the rainy season.

Engine & Performance

The Weichai WP12.430E501 in Euro 2 configuration uses a Bosch-licensed P-type mechanical inline injection pump. This is an intentional engineering choice, not a cost-cutting measure:

• Fuel tolerance: Operates reliably on diesel with sulfur content from 50 ppm to 2,000 ppm — no HPCR pump damage from low-lubricity fuel
• No limp-home modes: Zero electronic sensors in the fuel system — a failed sensor on a common-rail engine can strand a truck 500 km from the nearest service center
• Field repairable: Injection pump timing and calibration can be performed by any diesel mechanic with basic tools and a spill-timing gauge
• Peak torque at low rpm: 2,060 Nm from 1,000 rpm means fewer gear changes on rolling terrain and less clutch wear in stop-start port traffic
• Oil consumption: Fleet data shows 0.05-0.08 L/1,000 km during first 100,000 km — within spec for an 11.6L engine

Chassis Structure

The X3000 frame is the same HSLA steel double-layer design proven on mining variants, but configured for highway service:

• Main rail: 850x300(8+7)mm double-layer, HSLA steel with 720-hour salt spray corrosion rating
• Fifth wheel mounting zone: Additional internal reinforcement plate and cast steel mounting bracket — prevents frame cracking under repeated coupling shock loads
• Crossmembers: 6-position riveted cast steel crossmembers with bolted connections at high-stress points for field replacement if damaged
• Frame coating: CED (cathodic electrophoretic deposition) primer with two-coat polyurethane topcoat — 3x the corrosion resistance of conventional spray-painted frames
• Rear towing crossmember: Integrated pintle hook mounting plate rated for 10-ton emergency tow

Fuel Efficiency

The long-haul configuration achieves 35-38 L/100km at 40-ton GCW on mixed African highway routes. This is documented through telematics data from fleet operators in Kenya, Ghana, and Zambia. Key efficiency contributors:

• 0.78 overdrive top gear: 1,300 rpm at 80 km/h — engine operates at peak BSFC island (187 g/kWh)
• Electromagnetic fan clutch: Engages only when coolant exceeds 88°C — saves 3-5 HP during highway cruise (approximately 1.5-2.0 L/100km improvement vs. fixed fan)
• Aerodynamic cabin: Wind tunnel-optimized X3000 cab with integrated roof deflector and side fairings — Cd approximately 0.65 (competitive for a cab-over tractor)
• Low-rolling-resistance tires: 12.00R20 16PR highway compound specification — approximately 8% lower rolling resistance than mining-compound alternatives
• 400L tank range: 1,050-1,140 km at cruise consumption — reduces refueling stops on corridors where fuel station spacing exceeds 300 km

Driver Comfort

For drivers spending 8-12 hours behind the wheel on multi-day corridor runs, cabin ergonomics directly impact safety, retention, and productivity:

• 4-point full-floating cab suspension: Coil spring and hydraulic damper system — reduces whole-body vibration exposure by 35% vs. rigid-mount cabs on rough road sections
• High-roof sleeper cabin: Internal standing height 1,820mm, sleeper berth 750x2,100mm with high-density foam mattress, privacy curtain, reading light, and USB charging port
• Independent diesel cabin heater: 2.2 kW output — essential for overnight rest stops in desert and highland regions where nighttime temperatures drop below 10°C
• Roof-mounted HVAC: 4.5 kW cooling capacity with 4-speed blower — maintains cabin temperature below 26°C at 45°C ambient
• Grammer MSG 90.3 air-suspension seat: 8-way mechanical adjustment, 80mm suspension travel, integrated 3-point seatbelt
• Cabin storage: Overhead compartments (2x 25L), under-bunk drawer, door pocket with 1.5L bottle holder, dash-top document tray

Suspension System

The highway-spec suspension is tuned for ride quality and tire life rather than extreme articulation:

• Front axle: 10-leaf parabolic spring (60Si2Mn shot-peened steel) with double-acting hydraulic shocks and 32mm anti-roll bar — 7,500 kg rated
• Rear bogie: 12-leaf balance-beam semi-elliptic with composite inter-leaf wear pads — reduces friction noise and extends spring life vs. all-steel contact
• Torque rods: 6-rod rear axle location system with replaceable rubber bushings — maintains pinion angle under torque load, prevents axle tramp
• Shock absorbers: Double-acting hydraulic, 60mm piston diameter, 200mm stroke — SACHs-licensed design

Loading Capacity

Road Condition Adaptability

Maintenance Advantage

The Euro 2 mechanical engine configuration dramatically simplifies maintenance in markets with limited dealer infrastructure:

• No diagnostic laptop required: All engine adjustments — valve lash, injection timing, idle speed — are purely mechanical and can be performed with standard hand tools
• Oil change: 30,000 km interval using CH-4 15W-40 — available at every truck stop in Africa and the Middle East. Sump capacity 32L with replaceable spin-on filter
• Fuel filtration: Dual-stage water separator + 10-micron primary + 5-micron secondary — critical for high-sulfur, potentially contaminated fuel from remote filling stations
• Clutch replacement: φ430mm single dry plate — standard off-the-shelf item available from any truck parts distributor. No specialized alignment tools needed
• Brake adjustment: Manual slack adjusters with visual wear indicator — no automatic slack adjuster complexity. Brake drum diameter 420mm, lining thickness 20mm (new), 6mm (replace)
• Wheel bearing service: Conventional tapered roller bearings, grease-packed — 40,000 km service interval. Standard bearing numbers cross-reference to Timken/SKF catalog

Spare Parts Support

SHACMAN's aftermarket parts network covers the key corridors where X3000 long-haul fleets operate:

• East Africa hub (Nairobi): Covers Kenya, Tanzania (Dar es Salaam), Uganda (Kampala), Rwanda, South Sudan (Juba), Ethiopia
• West Africa hub (Lagos): Covers Nigeria, Ghana (Tema), Côte d'Ivoire (Abidjan), Senegal (Dakar)
• Southern Africa hub (Lusaka): Covers Zambia, Zimbabwe (Harare), DRC (Lubumbashi), Malawi, Mozambique (Beira)
• Middle East hub (Dubai JAFZA): Covers UAE, Saudi Arabia (Dammam, Jeddah), Iraq, Jordan, Kuwait, Oman

Common wear parts inventory maintained at 95%+ fill rate at each hub: brake linings & drums (6 SKUs), clutch kits (3 SKUs), U-joints & center bearings (8 SKUs), filters — oil/fuel/air (12 SKUs), belts & tensioners (5 SKUs), suspension bushings & shock absorbers (20 SKUs), lighting & electrical (25 SKUs). VIN-lookup parts catalog available online through SHACMAN EPC portal.

Technical Specifications

Why Choose SHACMAN

For long-haul fleet operators in Africa and the Middle East, the decision to choose SHACMAN over European or Indian alternatives comes down to four practical factors:

• Total cost of ownership: Acquisition cost 30-40% below equivalent European specification. Mechanical injection engine eliminates expensive common-rail injector replacements (typically USD 400-600 per injector x 6 cylinders at 200,000-300,000 km on Euro 3+ engines). Parts pricing from regional distribution centers is 50-70% below European OEM equivalent part numbers.
• Fuel flexibility: The Euro 2 mechanical engine operates on diesel from 50 ppm to 2,000 ppm sulfur without degradation. No SCR catalyst to foul, no DPF to regenerate, no HPCR pump to seize. This single factor avoids the most common cause of truck downtime in Sub-Saharan Africa — contaminated fuel destroying high-pressure common rail systems.
• Service simplicity: Any diesel mechanic who can work on a 1990s-era Mercedes or MAN will find the WP12 engine familiar. Valve adjustments use screw-and-locknut (not shim-under-bucket). Injection timing uses a spill-timing gauge. No laptop, no software license, no dealer-only diagnostic tool.
• Parts network: Regional distribution centers on four continents with 48-hour dispatch to major cities. No 6-week lead times from Europe. Common wear parts cross-reference to standard industrial part numbers available from non-OEM distributors.

FAQ

Q: What diesel quality can the Euro 2 engine tolerate?
A: The mechanical injection pump operates reliably on diesel with sulfur content from 50 ppm to 2,000 ppm. For best injector life, we recommend fuel with cetane number ≥ 45 and water content < 200 ppm. The dual-stage fuel filter with water separator handles typical contamination found at remote filling stations.

Q: Is the truck available in right-hand drive?
A: Yes. RHD configuration is factory-standard for Kenya, Tanzania, Uganda, Zambia, South Africa, and other Commonwealth markets. The conversion uses the same cabin tooling with mirrored dashboard, steering column, and pedal box — not an aftermarket modification.

Q: What is the typical delivery time?
A: 15-25 working days for standard specification from deposit. Custom configurations (e.g., 600L fuel tank, RHD, specific tire brand, additional lighting) add 5-10 working days. Vessel transit time to destination port is additional: approximately 25-30 days to Mombasa/Dar es Salaam, 35-40 days to Lagos/Tema, 20-25 days to Dubai/Jeddah.

Q: Can you supply spare parts kits with the initial order?
A: Yes, we strongly recommend a USD 5,000-15,000 initial spare parts package including filters (oil, fuel, air), brake linings, clutch kit, U-joints, belts, and common electrical components. The parts list is customized based on expected annual mileage and local availability at destination.

Q: What warranty terms apply?
A: 12 months or 100,000 km comprehensive. 18 months or 150,000 km on powertrain (engine, transmission, drive axles). Warranty claims processed through regional distributor with parts replacement from local stock where available. Extended warranty to 24 months/200,000 km available for fleet orders of 10+ units.

Q: Do you provide operator training?
A: For orders of 10+ units, we deploy a SHACMAN-certified trainer to your location for 3-5 days covering daily inspection, driving technique (gear selection, engine brake usage, fuel-efficient driving), basic maintenance, and troubleshooting. Training materials available in English, French, and Arabic.

Q: Are these trucks compatible with standard trailers in my country?
A: Yes. The JOST JSK37 fifth wheel with 3.5-inch (89mm) kingpin receiver is the global standard. Compatible with container chassis (20ft, 40ft, 45ft), flatbed trailers, low-bed trailers, bulk tankers, and skeletal trailers from any manufacturer. Fifth wheel height: 1,300mm unladen, 1,250mm at full vertical load — within ISO standard for trailer coupling.
