SHACMAN F3000 Composite Version 6×4 Water Sprinkler Truck 20m³ Euro II

Brand Name:	SHACMAN
Model Number:	SHAACMAN F3000 6×4 Truck Mounted Crane
MOQ:	1
Price:	Negotiable
Delivery Time:	35-55days

Detail Information

Product Description

Detail Information

Place of Origin:

SHAANXI,XIAN

Product Description

Product Overview

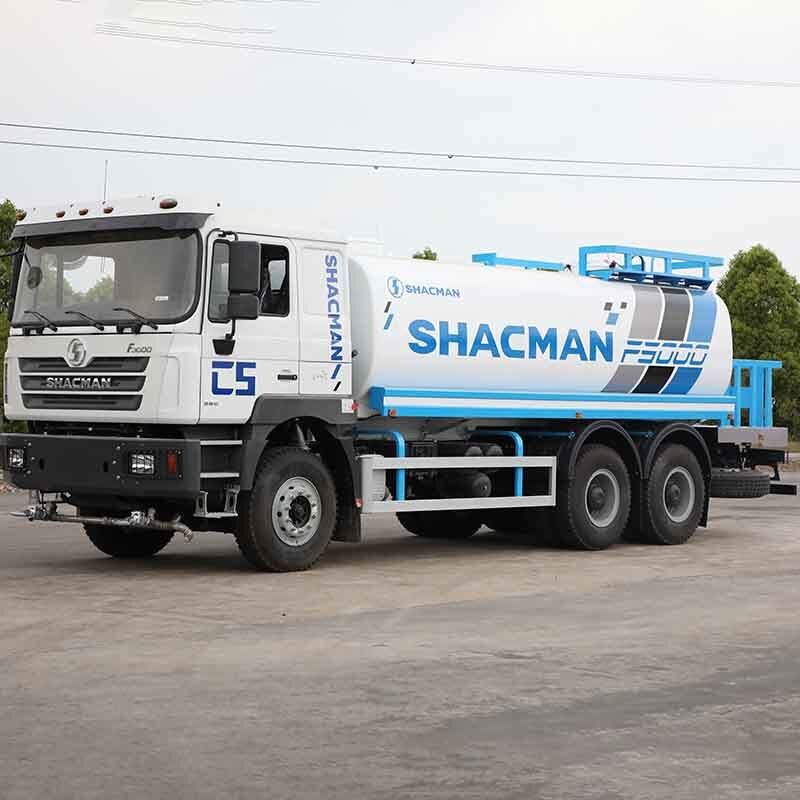

SHACMAN F3000 Composite Version 6×4 Water Sprinkler Truck (Model: SX5255GSSDN434, Tank Volume: 20m³)

The SHACMAN F3000 composite version 6×4 water sprinkler truck is a heavy-duty water transport & dust suppression vehicle designed for national highways, provincial roads and suburban municipal operations, with a limited single transport distance of ≤500km and full-load economic speed of 50–70km/h. Built on the proven SHACMAN F3000 heavy-duty truck platform, this 300PS vehicle delivers powerful climbing capacity, heavy load bearing performance and low maintenance costs, perfectly matching the road conditions of Central Asia, Africa and Southeast Asia.

Since launch, this 6×4 sprinkler truck has been widely supplied to municipal sanitation bureaus, mining enterprises, greening engineering contractors and rural water supply fleets. It undertakes core tasks including road dust reduction, urban green watering, construction site water supply and short-distance bulk water transportation. Equipped with Weichai WP10 engine, FAST manual transmission and 16-ton HD double reduction drive axle, it serves as a cost-effective heavy-duty work vehicle for large-volume water haulage scenarios.

Key Features

Weichai WP10.300E22 inline-6 diesel engine, rated power 300PS, stable low & medium-speed torque output for full-load climbing on slope sections
FAST 9_RTD11509C manual transmission with iron housing & OH50 flange, auxiliary low gear ensures smooth startup under maximum tank load
High-strength riveted frame: 850×300mm cross-section with 8+5 layered steel plates, strong anti-torsion performance for heavy water tank loading
HANDE 16-ton HD double cast drive axle, final drive ratio 5.262, balances heavy load traction and medium-speed road driving efficiency
HD 7.5-ton drum brake front steering axle, matched with robust multi-leaf spring suspension for adaptation to uneven provincial & rural gravel roads
300L aluminum alloy fuel tank, long cruising mileage to cut frequent refueling during long-distance sprinkling operations
Oil bath air filter as standard, superior dust filtration capacity to adapt to high-dust mining and construction working environments
F3000 flat-top cab with export exclusive one-country-one-set full configuration: 4-point hydraulic cab suspension, full English exterior & interior markings, anti-theft battery box & fuel tank cap, 2 warning hazard lights

Transportation Scenarios

1. National & Provincial Highway Dust Suppression

For sanitation fleets undertaking daily road cleaning and dust control on paved arterial roads, the 6×4 three-axle layout provides stable bearing capacity for the 20m³ large water tank. The economic speed range of 50–70km/h keeps fuel consumption controlled during long-hour continuous sprinkling work. The 16-ton heavy-duty rear axle ensures reliable full-load driving on sloped mountain provincial roads.

2. Mining & Construction Site Water Supply

On open-pit mines, highway construction zones and large infrastructure projects, this sprinkler truck transports bulk water for site dust suppression, concrete mixing and construction watering. Multi-leaf front & rear leaf springs effectively absorb vibration from rough gravel roads. Simple mechanical exhaust system minimizes maintenance frequency in remote areas lacking professional service stations.

3. Urban & Rural Greening Engineering

For landscape contractors and municipal greening teams, the large 20 cubic meter tank reduces frequent water refilling trips for street tree irrigation, park watering and seedling base water supply. Standard taillight protective grille and heavy-duty bumpers prevent collision damage during narrow rural road operations.

4. Short-Distance Inter-County Bulk Water Haulage

For rural water supply projects within a 500km single transport radius, the 300L aluminum fuel tank supports non-stop cross-town water delivery. The robust chassis structure adapts to mixed pavement including asphalt, gravel and compacted dirt roads, suitable for regions with incomplete road infrastructure.

Engine & Performance

The Weichai WP10.300E22 is a turbocharged intercooled inline-six diesel engine complying with Euro II emission standard:

High torque output at low rotation speed, fewer gear shifts when climbing with full 25.554-ton total vehicle mass
Mature mechanical fuel injection system, excellent compatibility with low-grade commercial diesel widely used in emerging overseas markets
Simple exhaust aftertreatment structure, low failure rate and easy field maintenance without complex electronic sensors
Service cycle: engine oil replacement every 30,000km, fuel filter maintenance every 60,000km
Built-in exhaust auxiliary brake to reduce service brake wear during downhill fully loaded operation

Chassis Structure

The F3000 heavy-duty chassis adopts thickened multi-layer beam design for extreme heavy load bearing:

Main frame parameter: 850mm height, 300mm width, inner beam 8mm + outer beam 5mm composite steel plate
Cast steel cross members riveted at key stress points to resist torsion force generated by full water tank sloshing during driving
Full vehicle cathode electrophoretic anti-corrosion coating, reliable anti-rust performance in humid and rainy regions
Passed 800,000km durability cycle test at SHACMAN Xi’an R&D center, stable for long-term heavy-load water transport work

Fuel Efficiency

Global fleet operation data from Central Asia and African municipal markets shows the F3000 6×4 sprinkler truck consumes 33–38 L/100km under full 25.554-ton GVW on mixed asphalt & gravel roads. Core energy-saving advantages:

WP10 engine combustion system optimized for constant-speed full-load sprinkling working conditions
9-speed transmission with high-efficiency direct gear to reduce power loss during steady-speed driving
Double reduction rear axle with high traction efficiency, avoiding power waste when climbing fully loaded
Silicone oil fan clutch only engages under high coolant temperature to reduce idle power consumption

Driver Comfort

The F3000 flat-top cab is configured for all-day heavy-duty sprinkling operation, matched with standardized export one-country-one-set accessories:

4-point hydraulic floating cab suspension to buffer bumpy road vibration and relieve long-driving fatigue
Hydraulic suspended main driver seat, manual window lifters, single cooling air conditioner for tropical high-temperature regions
Manual cab tipping mechanism, 3-stage boarding foot pedals for easy entry and exit
Standard full English interior labels, exterior SHACMAN brand logo to meet overseas market regulatory marking requirements
Interior noise controlled within 76dB(A) at 65km/h cruising speed for long-hour comfortable operation
Simple centralized control layout, easy operation linkage with rear sprinkling upper equipment

Suspension System

Standard full-vehicle multi-leaf steel spring suspension customized for mixed complex pavement:

Front axle multi-leaf spring assembly matched with hydraulic shock absorbers, rated front load 7.5 tons
Dual rear axle heavy-duty semi-elliptical leaf spring group, reinforced to bear the weight of full 20m³ water tank
Spring material: 60Si2Mn high-strength spring steel with shot peening treatment, extended service life under frequent full-load impact
Composite wear-resistant gaskets installed between leaf springs to eliminate abnormal friction noise on rough roads

Loading Capacity Table

Parameter	Value
Gross Vehicle Weight (GVW)	25,554 kg, Max Allowable GVW ≤35,000 kg
Front Axle Rated Load	7,500 kg
Dual Rear Axle Total Rated Load	18,054 kg
Standard Water Tank Volume	20 m³
Economic Cruising Speed	50–70 km/h
Maximum Governed Speed	90–120 km/h
Maximum Climbing Gradient	26%
Single Limited Transport Distance	≤500 km

Road Condition Adaptability

Working Condition	Matching Configuration Advantage
National & provincial asphalt paved roads	Optimized 4375+1400mm wheelbase, stable straight-line driving for long-distance sprinkling
Gravel & mining rough dirt roads	Reinforced multi-leaf suspension, oil bath heavy-duty air filter for strong dust resistance
Mountain sloped county roads	5.262 large rear axle speed ratio + engine exhaust auxiliary brake, powerful full-load climbing performance
High temperature tropical areas	Large-capacity aluminum radiator, single cooling air conditioning, 300L large fuel tank for continuous operation
Humid rainy regions	Elevated air intake pipeline, full vehicle mudguards, sealed wiring harness connectors

Maintenance Advantage

Manual hydraulic cab flip design: single technician can fully expose the engine compartment within 3 minutes for daily inspection and maintenance
Concentrated grease filling ports arranged on the chassis, all routine maintenance points reachable from ground level without lifting equipment
Modular engine, transmission and axle assemblies; spare parts interchangeable with mainstream SHACMAN F3000 heavy-duty series
Spin-on oil filter, fuel filter and water separator mounted on the co-pilot side, easy replacement with standard general tools
Unified fault diagnosis interface compatible with Weichai professional detection equipment, fast troubleshooting of power system faults
Standard maintenance cycle summary: engine oil 30,000 km, transmission oil 80,000 km, rear axle gear oil 80,000 km, brake pad inspection every 15,000 km

Spare Parts Global Support

SHACMAN global regional spare parts warehouses fully cover major sales markets of the F3000 heavy-duty platform:

Central Asia Warehouse: Almaty (Kazakhstan), supply Uzbekistan, Tajikistan, Kyrgyzstan, Turkmenistan
East Africa Warehouse: Nairobi (Kenya), cover Tanzania, Uganda, Rwanda, Zambia
West Africa Warehouse: Lagos (Nigeria), serve Ghana, Ivory Coast, Mali, Burkina Faso
Middle East Warehouse: Dubai (UAE), cover Saudi Arabia, Oman, Iraq, Yemen

Each regional warehouse stocks more than 4,500 types of common F3000 spare parts, with delivery within 48 hours to core port cities. Consumables including air filters, leaf springs, brake drums, clutch kits, U-bolts and tank accessories maintain over 93% stock availability. VIN exclusive parts query is supported via SHACMAN official electronic parts catalog system.

Full Technical Specifications Table

Specification	Detailed Parameter
Complete Vehicle Model	SX5255GSSDN434
Drive Form	6×4 (1 steering front axle + 2 drive rear axles)
Engine Model	Weichai WP10.300E22 Inline 6 Turbo Intercooled Diesel
Displacement	10L
Rated Power	300 PS / 221 kW @ 2200 rpm
Emission Standard	Euro II
Transmission Model	FAST 9_RTD11509C, 9 forward gears + reverse gear, iron housing with OH50 flange
Front Axle	HD 7.5-ton drum brake steering axle
Rear Drive Axle	16T HD double cast reduction axle, speed ratio 5.262
Frame Size	850×300mm (8mm inner +5mm outer double-layer riveted steel)
Front Suspension	Multi-leaf parabolic leaf spring with hydraulic shock absorber
Rear Suspension	Dual axle multi-leaf semi-elliptic leaf spring assembly
Service Brake	Dual-circuit air drum brake system
Fuel Tank	Standard 300L aluminum alloy fuel tank
Tire Spec	12.00R20 mixed pattern radial tire
Wheelbase	4375mm + 1400mm
Frame Rear Overhang	2400 mm
Standard Water Tank Volume	20 m³
Curb Weight	About 12,500 kg
Governed Maximum Speed	90–120 km/h
Standard Export One-Country-One-Set Configuration	4-point hydraulic cab suspension, full English marking, 2 hazard warning lights, anti-theft battery box & fuel tank cap, spare tire bracket, economic tool box, front cab lateral shock absorber

Why Choose SHACMAN F3000 6×4 Composite Version Water Sprinkler Truck

SHACMAN Xi’an heavy truck production base owns mature heavy-duty vehicle production lines, with annual output exceeding 80,000 F3000 platform vehicles. Absorbing German MAN heavy truck manufacturing technology, this sprinkler truck has four core competitive advantages for overseas municipal, mining and engineering fleet buyers:

Field-verified reliable performance: Tens of thousands of F3000 heavy trucks operate stably in Central Asia, Africa and Southeast Asia, with low long-term failure rates under heavy water tank full-load working conditions
Complete localized spare parts supply network: Global regional warehouses cover major overseas markets to eliminate long waiting periods for maintenance accessories
Outstanding cost performance: Factory price far lower than European & American heavy-duty sprinkler trucks, while achieving equivalent full vehicle service life
Simplified maintenance mechanical design: Euro II mechanical injection power system without complex electronic sensors, adapting to regions with insufficient professional repair technicians and low-quality fuel supply
Factory standardized export one-country-one-set full configuration: Pre-installed full English marking, anti-theft components and hydraulic cab suspension, direct factory delivery without secondary modification for export

FAQ

Q: What is the minimum order quantity?

A: Single unit sample order is acceptable. Volume bulk order discounts are available for orders above 5 units.

Q: Can LHD and RHD chassis be customized?

A: Both left-hand drive and right-hand drive versions are supported directly from factory. RHD chassis is standard configuration for Commonwealth markets such as East Africa.

Q: What emission standards are available?

A: Euro II mechanical injection version is standard; Euro III / Euro V electronic injection versions can be customized for markets with stricter emission regulations.

Q: How long is the production delivery cycle?

A: Standard basic export configuration: 15–20 working days after deposit payment. Customized optional accessories will extend the production cycle to 20–30 working days. Sea shipping transit time depends on destination port.

Q: What is the factory global warranty policy?

A: Whole vehicle warranty: 12 months or 100,000 km (whichever reaches first). Powertrain (engine, transmission, rear axle) extended warranty: 18 months or 150,000 km. Custom long-term extended warranty plans are available for large fleet orders over 10 units.

Q: Will professional operation & maintenance technical training be provided?

A: Yes. For orders over 10 units, SHACMAN will arrange professional after-sales technicians to provide local training at destination port, buyer bears round-trip travel expenses of technicians.

Q: Can this F3000 chassis match different brand sprinkler upper tank equipment?

A: Yes. The chassis rear upper mounting interface is universal, compatible with all mainstream domestic and international brand 15–25m³ sprinkler tank assemblies, supporting customized sprinkling functions including front flush, side spray, rear fog cannon.
